Good Quality Packs

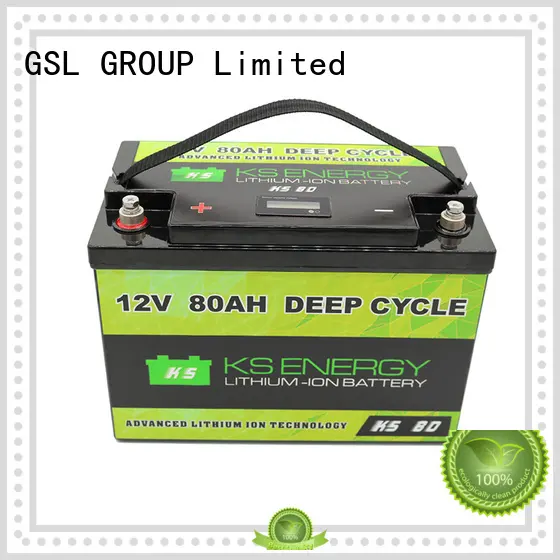

light weight 100ah solar battery customization for camping
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS1280
Battery combination:
4S 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
80Ah
Size ( mm) / Size ( inch) L*W*H:
323*1171*215/ 12.7*6.7*8.5
Weight:
10.5 kgs/ 23.15 lbs
Application:
V, Caravan, Camping cars, trolling motors, AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 20 days after deposit
Product Details
GSL ENERGY's OEM Lithium Ion Battery is exquisite in details. OEM Lithium Ion Battery is a high-quality product with excellent performance. Reasonable in structure, it is easy to assemble and disassemble.
1. Numbers of critical tests are carried out on GSL ENERGY dual purpose marine battery . They include structure safety testing (stability and strength) and surfaces durability testing (resistance to abrasion, impacts, scrapes, scratches, heat, and chemicals).
2. 100ah solar battery is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.
3. GSL GROUP Limited has large-scale integrated processing plant for 100ah solar battery .
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS1280 | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 1024 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 323*171*215 |
| Battery pack Capacity (AH) | 80 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 10.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 60A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 80A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. Engaged in market research, designing, manufacturing of dual purpose marine battery for years, GSL GROUP Limited has received a good reputation in the industry.
2. With the support of advanced manufacturing technique, our 100ah solar battery is of high performance and finest quality.
3. GSL GROUP Limited attaches great importance to after-sales service and has established after-sales service team. Contact us! GSL GROUP Limited strive to boost overseas sales by establishing a new export department. Contact us!
