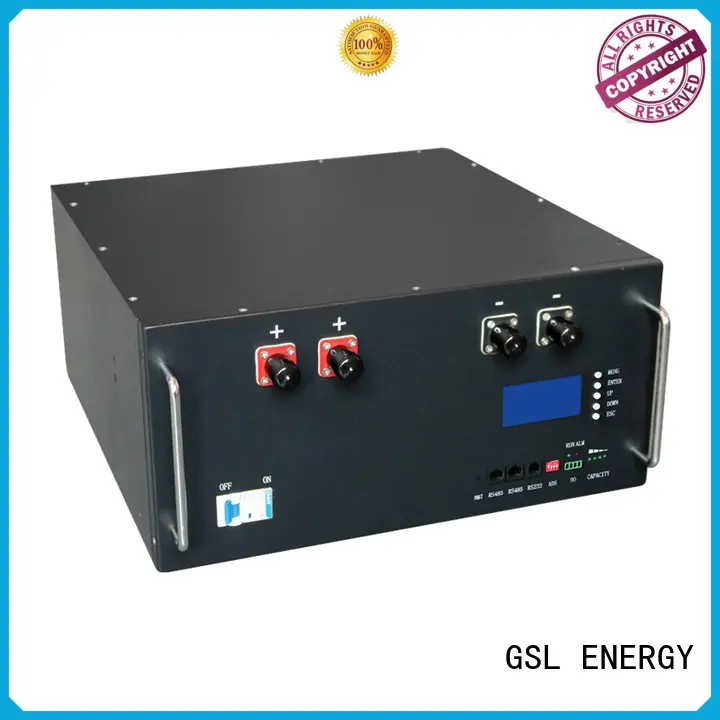

lifepo4 ess battery order now for industry

Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-48100-5U
Rated voltage:
48
Capacity:
100Ah
Size ( mm) / Size ( inch) L*W*H:
442*480*220/ 17.40*18.90*8.66
Weight:
48kgs/ 105.82 lbs
Application:
Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package:
Carton Box
Payment terms:
T/T
Delivery time:
With 20 days after deposit
Inquiry
Company Advantages
1. The raw material of GSL ENERGY telecom battery bank is strictly controlled from beginning to finish. GSL Li-Ion battery features military-grade plates for an extra margin of performance and service life
2. The product perfectly suits the application requirements of customers and now enjoys a larger market share. The battery case of GSL Li-Ion battery is made from a Non-Conductive ABS plastic
3. This product comes with structural integrity. A steel frame is welded together, corrugated Corten steel is placed on the outside of the frame providing an exterior that can withstand everything thrown at it; wood flooring is then treated and bolted down inside. GSL's advanced lithium-ion technology makes battery offer an estimated 3000-5000 cycles
4. This product is safe to use. All its circuits are exquisitely designed. They include the main circuit, the control circuit, signal circuit, and other local circuits. GSL 12V lithium-ion battery is a new environmentally friendly backup power system
PRODUCT PARAMETER

GSL ENERGY

product-GSL ENERGY-img



BASICPARAMETERSGSL4850-2UGSL48100-5UGSL48200-5U
Nominal Voltage(V)484848
Nominal Capacity(Wh)240048009600
Dimension (mm)442*480*88442*480*220442*650*220
Weight (Kg)234887
Discharge Voltage (V)45~5445~5445~54
Charge Voltage (V)52.5~5452.5~5452.5~54
Max Discharge Current (A)50100125
Max Charge Current (A)50100125
CommunicationRS232,RS485,CANRS232,RS485,CANRS232,RS485,CAN
Charging Temperature0℃~50℃0℃~50℃0℃~50℃
Discharging Temperature-10℃~50℃-10℃~50℃-10℃~50℃
Shelf Temperature-20℃~60℃-20℃~60℃-20℃~60℃
CertificationIEC / CE / UN38.3IEC / CE / UN38.3IEC / CE / UN38.3
Design life10+Years(25℃/77℉)10+Years(25℃/77℉)10+Years(25℃/77℉)
Cycle Life>4500 ( 90% DoD)>4500 ( 90% DoD)>4500 ( 90% DoD)



PRODUCTS DISPLAY



product-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-GSL ENERGY-img






Product Performance

product-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-GSL ENERGY-img  Vertical industry integration ensures more than 6000 cycles with 90% DoD.
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Compact and fashionable design fits in your sweet home environment.
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Deliver up to 5KW with single module (2.4KWh).
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Modular design gives the end customers the power of choice of capacity.
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Compatible with most of the available Hybrid inverters.
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Simple buckle fixing minimize the installation time and cost.
product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img  Safety Cert.TüV CE UN38.3 IEC.



PRODUCT ADVANTAGE



product-GSL ENERGY-img



product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img



product-GSL ENERGY-img

You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION



product-GSL ENERGY-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-img


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.


product-GSL ENERGY-img-1



PACKING

product-GSL ENERGY-48V 100AH Lifepo4 Battery For Solar And Telecom UPS-img-1

Good Quality Packs
VS
product-GSL ENERGY-img-1

Low Quality Packs

SUPER SAFETY TEST


product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img-1

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US


 Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
 Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
 Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
 Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
 Fresh battery-- All battery is fresh Production.


product-GSL ENERGY-img-1




Company Features
1. GSL GROUP Limited is a global quality supplier and manufacturer of telecom battery bank .
2. GSL GROUP Limited has a strong technical force and a stable technical backbone.
3. We support sustainable management to back up our company's long-term viability. We will make our production progress to be compliant with environmental regulations or conform to sustainable policies and initiatives.
