Good Quality Packs

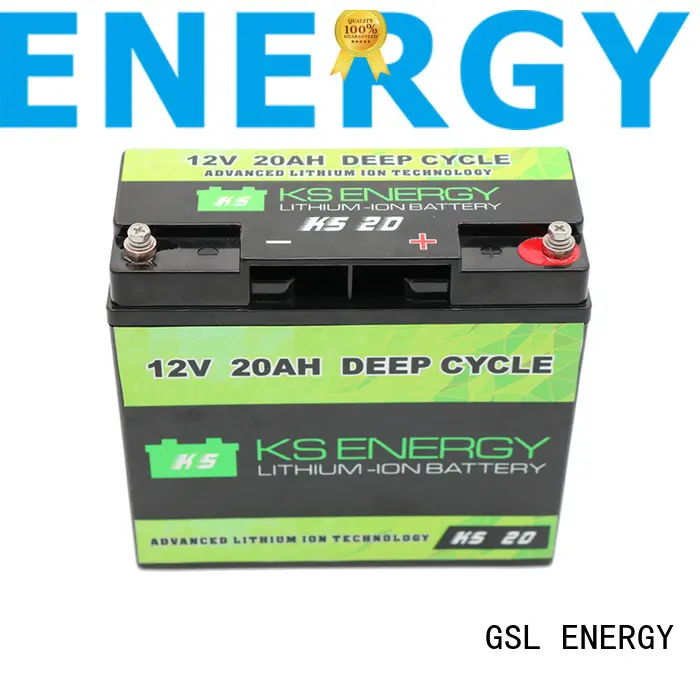

GSL ENERGY rechargeable 12v solar battery manufacturer for camping
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS20
Battery combination:
4S6P 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
20Ah
Size ( mm) / Size ( inch) L*W*H:
181*76*167/ 7.1*3.0*6.6
Weight:
2.5 kgs/ 6.28 lbs
Application:
AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T , L/C
Delivery time:
With 10 days after deposit
Product Details
With the pursuit of excellence, GSL ENERGY is committed to showing you unique craftsmanship in details. OEM Lithium Ion Battery is manufactured based on high-quality materials and is processed by special techniques. It has good corrosion resistance and small contact resistance with active materials to play a good discharge role. Compact in structure, it is easy to assemble and disassemble.
Enterprise Strength
- GSL ENERGY has excellent customer service management team and professional customer service personnel. We can provide comprehensive, thoughtful, and timely services for customers.
1. GSL ENERGY 12v solar battery is constructed according to high safety standards. It is built with overvoltage protector, residual-current circuit breaker (RCCB), safe indicator, and high capacitive load capacity.
2. 12v solar battery is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.
3. Made from superior materials, 12v solar battery has the advantages of large capacity, high power, low self-discharge rate, good temperature resistance, etc. It can not only support the equipment for a long time, but also can be recycled many times.
4. With solid technical strength, GSL GROUP Limited has strong capability of [核心关键词 processing, development and production.
5. Adopting the technical method makes 12v solar battery more practical and applicable in this industry.
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS20 | Battery pack Discharge Current (Max.) | 40A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 256 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 181*76*167 |
| Battery pack Capacity (AH) | 20 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 2.5KG |
| Battery System Charge Current (Standard) | 5A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 10A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 20A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 10A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 20A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. GSL GROUP Limited is professional and reliable as a supplier and manufacturer of 12v solar battery .
2. We have enjoyed a relatively substantial share of the market for our products, and our company's annual income has increased gradually.
3. Customer satisfaction is the ultimate pursuit of GSL ENERGY. GSL ENERGY is a globally renowned brand in the field of exporting 200ah solar battery. Check it!
