Good Quality Packs

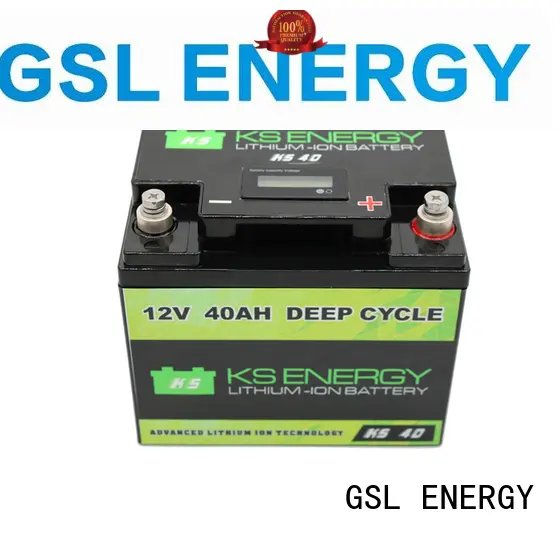

GSL ENERGY lifepo4 battery 12v 100ah customization led display
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS1240
Battery combination:
4S 13P 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
40Ah
Size ( mm) / Size ( inch) L*W*H:
197*165*169/ 7.8*6.5*6.7
Weight:
4.5 kgs/ 9.92 lbs
Application:
AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 10 days after deposit
Enterprise Strength
- With a comprehensive management service system, GSL ENERGY is capable of providing customers with one-stop and professional services.
Application Scope
Lithium Battery is mostly used in automobiles, motorcycles, tractors, diesel engines and other products.GSL ENERGY insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
1. Advanced technology and latest machine & equipment are used to ensure GSL ENERGY 12v 20ah lithium battery is manufactured based on the requirements of lean production.
2. lifepo4 battery 12v 100ah has shown virtues like 12v 20ah lithium battery .
3. [企业简称] strictly controls the raw material selection and the production links and sets up a quality inspection department responsible for factory inspection. All this ensures the excellent quality of lifepo4 battery 12v 100ah .
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS1240 | Battery pack Discharge Current (Max.) | 80A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 512 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 197*165*169 |
| Battery pack Capacity (AH) | 40 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 4.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 40A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 40A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. GSL GROUP Limited is one of the Chinese biggest producers of lifepo4 battery 12v 100ah .
2. GSL ENERGY is booming now for its lithium battery 12v 300ah .
3. To implement 12v 20ah lithium battery is the base of GSL GROUP Limited's work. GSL GROUP Limited is committed to satisfying every customer with good service. Get more info! Perfect inner controlling system is the presupposition of steady running in GSL GROUP Limited. Get more info!
