Good Quality Packs
Products type | MODEL : GSL4880 | Battery pack Discharge Current (Max.) | 250A |
Cell Technology | NCM Lithium | Efficiency | 98% |
Battery Pack Capacity (Wh) | 4096 | Depth of Discharge | 100% |
Battery pack Voltage (Vdc) | 51.2 | Dimension (L*W*H, mm) | 480*330*230 |
Battery pack Capacity (AH) | 80 | Communication | Option of CANBUS OR RS485, SMbus |
Battery pack Cell Quantity in Series (pcs) | 14S | Protection Class | IP54 |
Battery pack Charge Voltage (Vdc) | 58.4 | Weight | 34.5KG |
Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
Battery pack Discharge lower-Voltage (Vdc) | 46V | Storage Temperature | minus 20 -- 60 ℃ |
Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |

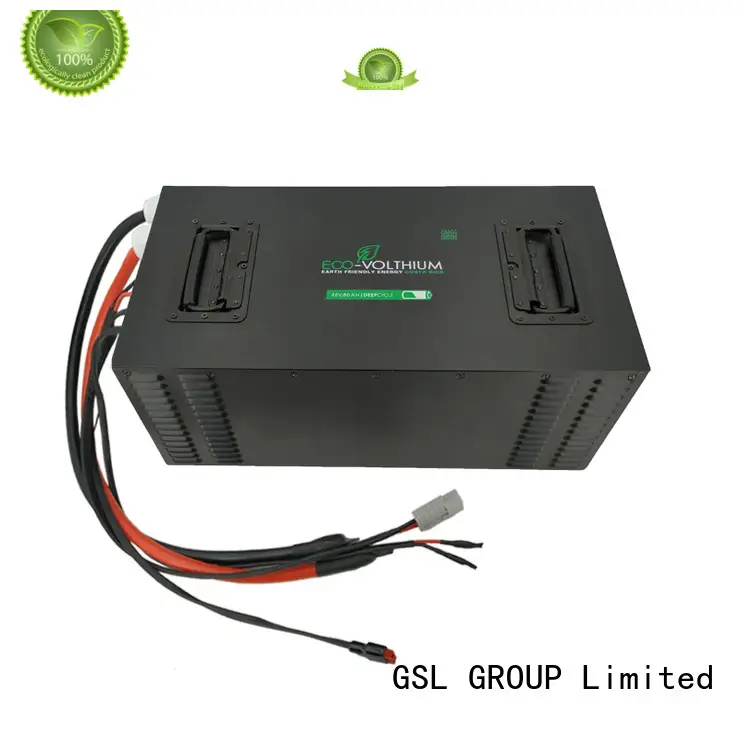

PRODUCTS DISPLAY
48V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
security guaranteed 100%
Protect Your Payment, Secure Your Order
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Or Irrevocable L/C at sight.
Q2. What is your terms of delivery?
A: FOB
Q3. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
