Good Quality Packs
Products type | MODEL : GSL4880 | Battery pack Discharge Current (Max.) | 250A |
Cell Technology | NCM Lithium | Efficiency | 98% |
Battery Pack Capacity (Wh) | 4096 | Depth of Discharge | 100% |
Battery pack Voltage (Vdc) | 51.2 | Dimension (L*W*H, mm) | 480*330*230 |
Battery pack Capacity (AH) | 80 | Communication | Option of CANBUS OR RS485, SMbus |
Battery pack Cell Quantity in Series (pcs) | 14S | Protection Class | IP54 |
Battery pack Charge Voltage (Vdc) | 58.4 | Weight | 34.5KG |
Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
Battery pack Discharge lower-Voltage (Vdc) | 46V | Storage Temperature | minus 20 -- 60 ℃ |
Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |

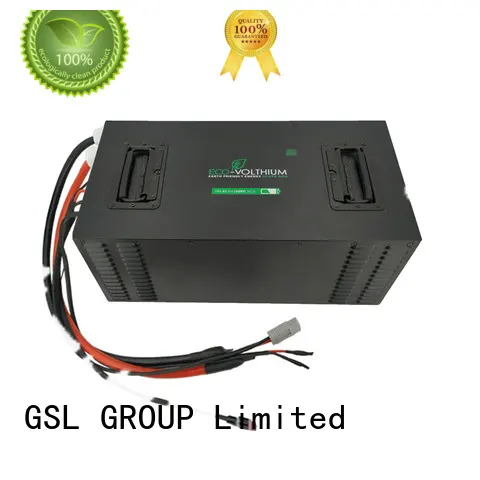

PRODUCTS DISPLAY
48V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Feature
1. Safety: safest Li-Ion battery, CE UL approved, built-in PCM/BMS, no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times at 1C rate and 100%DoD, 6-8 times of lead acid battery
4. No memory effect, highly efficient,charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly
Specification
www.optimumnanolithiumbattery.com
LiFePO4 12V 80Ah battery | |
Rated capacity | 80Ah |
Rated voltage | 12.8V |
connection | 4S15P |
Package | ABS plastic / PVC wrapped |
Protection | PCM(protection circuit management) |
continuous charge current | MAX 80A |
continuous discharge current | MAX 80A |
peak current (10S) | 150A |
maximum charge voltage | 14.6V |
maximum discharge voltage | 10V |
cycle life | >3000 times @80%DOD |
size | customized |
Weight | 4.5Kg |
Charging method (CC-CV) | CC-80A;CV-12.8V (continuous) |
CC-80A;CV-14.6V(rapid) | |
Operating temperature | charge:0℃-45℃ |
discharge:-20℃-60℃ | |
storage:0-45℃ |
