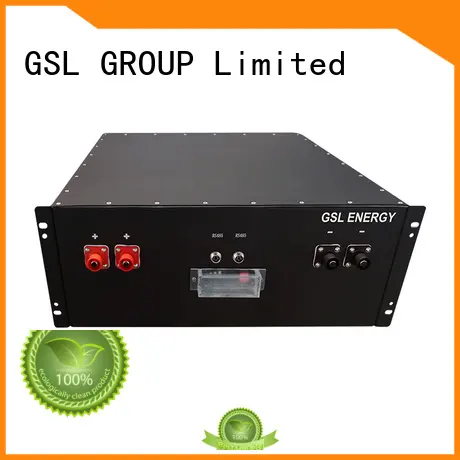

GSL ENERGY 1mw battery storage for home

Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL48200-5U
Rated voltage:
48
Capacity:
200Ah
Inquiry
Product Comparison
OEM Lithium Ion Battery is equipped with high-quality battery pack. It has the advantages of large capacity, high power, good charge and discharge performance, etc. Moreover, it has a terminal protective cap, which can effectively reduce the terminal loss rate and extend the service life.Compared with other same kind of products in the market, GSL ENERGY's OEM Lithium Ion Battery is equipped with the following outstanding advantages.
  • GSL ENERGY 1mw battery storage for home 11
    v s
    GSL ENERGY 1mw battery storage for home 12
Company Advantages
1. GSL ENERGY telecom solar power systems , manufactured using well-selected materials and the latest production technology, is exquisite in every detail.
2. 1mw battery storage are recognized for their excellent properties of telecom solar power systems .
3. GSL GROUP Limited concerns about mutual benefit and common development with customers.
PRODUCT PARAMETER

GSL ENERGY

product-GSL ENERGY-img


Products typeMODEL : GSL48200-5U
Battery pack Discharge Current (Max.)150A
Cell TechnologyLifepo4Efficiency98%
Battery Pack Capacity (Wh)2400Depth of Discharge100%
Battery pack Voltage (Vdc)48Dimension (L*W*H, mm)442*480*88
Battery pack Capacity (AH)50CommunicationOption of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs)15SProtection ClassIP54
Battery pack Charge Voltage (Vdc)54Weight23KG
Battery System Charge Current (Standard)10AOperation Life10+ years
Battery pack Charge Current (Normal)20AOperation Cycle LifeOver 4000 times
Battery pack Charge Current (Max.)50AOperation Temperature0-50℃
Battery pack Discharge lower-Voltage (Vdc)46VStorage Temperatureminus 20 -- 60 ℃
Battery System Discharge Current (Standard)20AProducts certificatesTÜV (IEC62619), CE
Battery pack Discharge Current (Normal)50ATransfer CertificatesUN38.3 , MSDS


PRODUCTS DISPLAY





product-GSL ENERGY-img






Product Performance

Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Deliver up to 5KW with single module (2.4KWh).
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.



PRODUCT ADVANTAGE



product-GSL ENERGY-img



product-48200-GSL ENERGY-img



product-GSL ENERGY-img

You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION



product-GSL ENERGY-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-img


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.


product-GSL ENERGY-img-1



PACKING

product-GSL ENERGY-img-1

Good Quality Packs
VS
product-GSL ENERGY-img-1

Low Quality Packs

SUPER SAFETY TEST


product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img-1

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US


Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


product-GSL ENERGY-img-1




Company Features
1. Since its inception, GSL GROUP Limited has always been committed to the professional filed of telecom solar power systems . We have accumulated many years of R&D and manufacturing experience.
2. The quality of GSL ENERGY is gradually being recognized by the majority of users.
3. We strive to minimize our negative impact on the environment. We stand for sustainable development and commit to doing business in an economically, ecologically and socially responsible way. In an effort to achieve environmental sustainability, we strive hard to make advancements in upgrading our original production model, including resource utilization and wastes treatment. Our culture is built on the power of our colleagues’ passion for their work and the stakeholders we serve, and we strive to foster an environment where that passion can be channeled into speed, decisiveness, and integrity. To better protect the environment, we carry out a more effective production way that helps cut down energy consumption and resource waste. In this way, we can make a contribution to reduce our carbon footprint.
