applications lifepo4 battery 12v 200ah lifepo4 led display GSL ENERGY
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS1280
Battery combination:
4S 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
80Ah
Size ( mm) / Size ( inch) L*W*H:
323*1171*215/ 12.7*6.7*8.5
Weight:
10.5 kgs/ 23.15 lbs
Application:
V, Caravan, Camping cars, trolling motors, AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 20 days after deposit
Product Details
GSL ENERGY pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.Lithium Battery is manufactured based on high-quality materials and is processed by special techniques. It has good corrosion resistance and small contact resistance with active materials to play a good discharge role. Compact in structure, it is easy to assemble and disassemble.
1. lifepo4 battery 12v 200ah is well designed to meet the market demand.
2. The product has the advantage of low internal impedance. The resistivity of the active materials is relatively low and the quality of the contacts between the individual electrode particles is high.
3. The product is robust. It is able to prevent possible leaks and lost energy capacity while enduring various harsh environments.
4. The quality of products is the key to GSL GROUP Limited's victory in market competition.
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS1280 | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 1024 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 323*171*215 |
| Battery pack Capacity (AH) | 80 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 10.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 60A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 80A | Transfer Certificates | UN38.3 , MSDS |

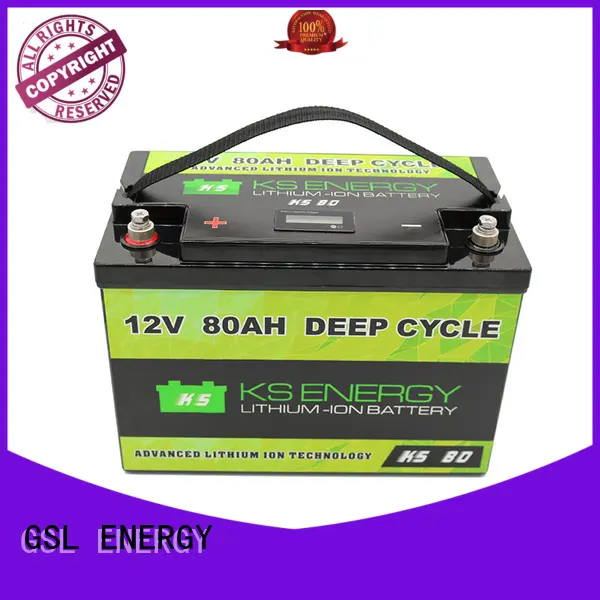

PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. GSL GROUP Limited is becoming more competitive in manufacturing and marketing lifepo4 lithium battery in today's fierce market competition.
2. GSL GROUP Limited has advanced technology and first-class equipment.
3. The ability of GSL GROUP Limited to produce lifepo4 battery 12v 200ah is in a leading position. GSL ENERGY has made a successful attempt to achieve the objective of becoming a global rv battery provider.
