2019 New Best Bechargeable Battery 3.7V 4000mAh 21700 Tesla Battery
- GSL ENERGY runs a comprehensive service system covering from pre-sales to sales and after-sales. Customers can rest assured during the purchase.
1. GSL ENERGY samsung 21700 cells is created by our highly skilled professionals.
2. 21700 battery is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.
3. Made from superior materials, 21700 battery has the advantages of large capacity, high power, low self-discharge rate, good temperature resistance, etc. It can not only support the equipment for a long time, but also can be recycled many times.
4. GSL ENERGY has been growing rapidly into a leader in 21700 battery and related equipment.

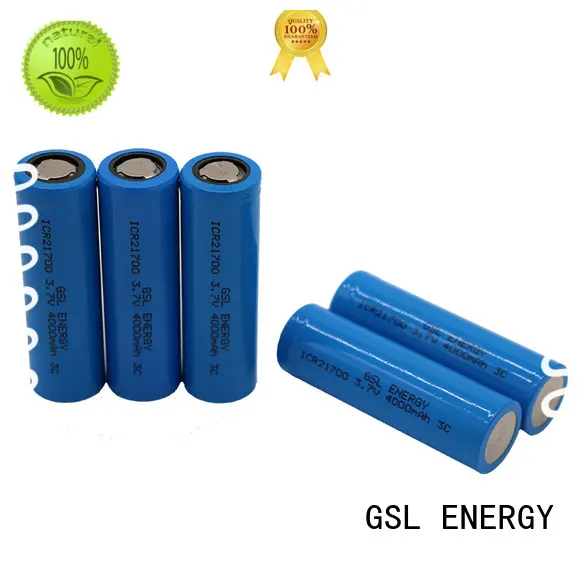

2019 New Best Bechargeable Battery 3.7V 4000mAh 21700 Battery For Tesla Powerwall
1. Application Scope
This product specification describes product performance indicators of Lithium-ion battery produced by SHENZHEN GSL TECH CO LTD.
2. Model
ICR21700-4000mAh-3.7V
3. Appearance and Dimension
Item | Dimension (mm) |
Diameter | 21±0.1 |
Height(H) | 70±0.4 |
4. Major Technical Parameters
No. | Item | Standard | Note | |
1 | Standard Capacity | 4000mAh | 0.5C,(current value of 2200mA at 1C) | |
2 | Capacity Range | 3950~4250mAh | 0.5C | |
3 | Standard Voltage | 3.7 V | ||
4 | Alternating Internal Resistance | ≤60mΩ | with PTC | |
5 | Charge Conditions | Cut-off Voltage | 4.2±0.05V | constant current charge to 4.2V at 0.5C, constant voltage charge to stop until 0.01C mA |
Cut-off Voltage | 0.01C | |||
6 | Discharge Cut-off Voltage | 2.75V | ||
7 | Cycle Characteristic | 1000 times | 100% DOD, the residual capacity is no less than 70% of rated capacity at 1C rate. | |
8 | Max. Continuous Discharge Current | 3C | ||
9 | Pulse Discharge Current | 5C, 5s | ||
10 | Working Temperature | Charge:0°C~55°C Discharge:-20°C~60°C | ||
11 | Storage Temperature | -20°C ~ 45°C | ||
12 | Battery Weight | 65 g (Approx.) | ||
5. Characteristics Curves
6.Safety Characteristics
NO | Item | Test Method | Standard |
1 | Overcharge | After normal charge, test the batteries’ initial state and capacity. Charge to 10.0V at 3C, then charge at CV mode to 0.01C. Observe battery’s variation of appearance. | No explosion, No fire. |
2 | Over Discharge | After normal charge, test the batteries’ initial state. When the batteries are normal, Discharge to 0V at 0.5C. Observe battery’s variation of appearance. | No explosion, No fire. |
3 | External Short-circuit | After normal charge, test the batteries initial state, Keep the battery into explosion protection cover, short-circuit the positive and negative terminals directly (general resistance shall be less than or equal to 50mΩ). Stop the test when the temperature falls to 10℃ lower than the peak value. Observe the variation of the batteries’ appearance and temperature. | No explosion, No fire. |
4 | Thermal Abuse | Test the batteries’ initial state and capacity. Standard charge. Put battery into oven, increase the temperature to 130±2℃ at rate of (5±2℃) /min, and keep it for 30min. Observe the variation of batteries’ appearance. | No explosion, No fire. |
5 | Drop | After normal charge, test the batteries’ initial state and capacity. Then let it fall from a height of 1m (the lowest height) to a smooth cement floor, twice. | No explosion, No fire. |
6 | Heavy Impact | A diameter of 15.8 mm steel rod is placed in the middle of the fully charged battery, then the weight of 10Kg hammer from 1.0m height free falls to the battery upper. | No explosion, No fire. |
7 | Extrusion Test | Place the battery in between the pressing surface of extrusion apparatus, parallel the axes of cylindrical battery to the pressing surface, and gradually increase pressure up to 13KN, keeping the pressure for 1min. | No explosion, No fire. |
SAFETY
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
APPLICATIONS
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
WHY CHOOSE US ?
1.Experience--More than 12 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
KS ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, KS ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
As a sub-factory of GSL GROUP, KS ENERGY is specializes in clean and new energy on lithium ion battery products.
Welcome To Visit Our Factory
Through years development and experienced international sales team in Shenzhen, KS ENERGY green solar and lithium battery products have been sold to clients all over the world.
Since 2006, KS ENERGY has maintained a corporate philosophy that is characterized by entrepreneurship, innovation, competition and transcendence. Today KS has established a solid foundation in two major industries: photovoltaic and Lithium, with its four production bases in Shangdong, Zhejiang, Sichuan, Guangdong.
KS ENERGY partners with customers to provide complete energy storage solutions that enable the rapid development and delivery of innovative products that meet demand in both existing and emerging markets.
--Professional pack module design on cylindrical and Prismatic design.
--Fast Production and Delivery time.
Company Features
1. GSL GROUP Limited is a traditional backbone enterprise in China's 21700 battery industry.
2. GSL GROUP Limited has strong technical advantage and will develop 21700 battery cell .
3. Diversified operations, intensified growth and continuous expansion of samsung 21700 battery business is GSL GROUP Limited's strategic principle. Get more info! GSL ENERGY grows up with your trust. Get more info! GSL GROUP Limited assures problems of customers are problems of ours and we will surely help. Get more info! The service tenet of GSL GROUP Limited is to provide customers with samsung 21700 cells . Get more info!
