Good Quality Packs
12v 20ah lithium battery marine liion GSL ENERGY Brand
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS12200
Battery combination:
4S 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
200Ah

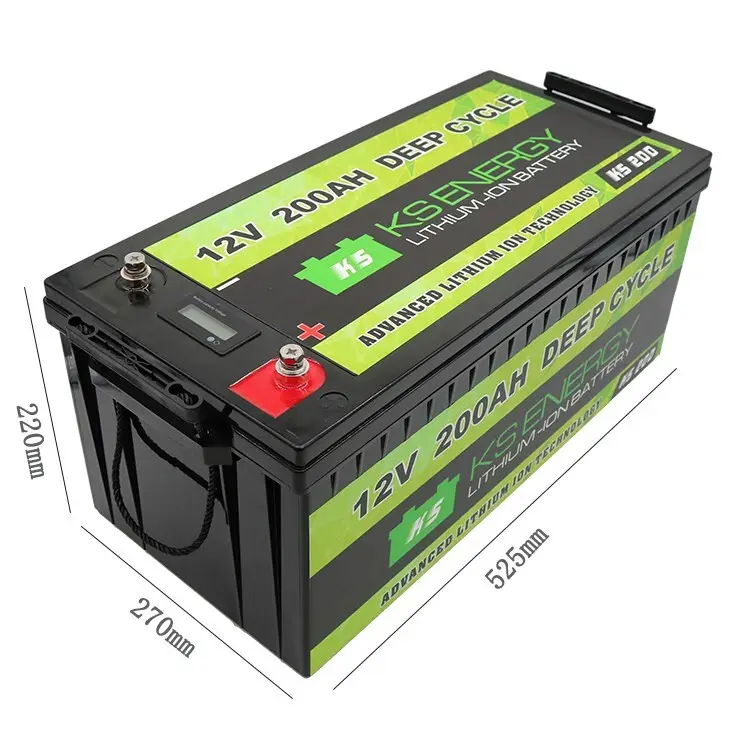

Size ( mm) / Size ( inch) L*W*H:
525*270*220/ 20.67*10.63*8.66
Weight:
28.0kgs/ 40.78 lbs
Application:
RV, Caravan, Camping cars, AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 20 days after deposit
Enterprise Strength
- GSL ENERGY has a production team with advanced technology and rich experience. The team members are dedicated to providing professional technical support for the production of quality products.
- GSL ENERGY runs a comprehensive pre-sales and after-sales service system. We can effectively protect consumers' rights and interests and provide quality products and services.
- With a focus on customers, GSL ENERGY always believes that sincerity-based management brings mutual benefit. Based on the core value, we intend to be efficient, pragmatic, excellent, innovative. Serving every customer wholeheartedly is our constant pursuit. We are committed to providing innovative products and services for customers.
- Since the establishment in 2006, GSL ENERGY has been actively making progress and pursuing development and innovation. We have developed rapidly and have won awards one after another in the electric equipment industry. We are now a leader in the industry.
- GSL ENERGY's products are exported to major cities and are highly praised by consumers.
1. GSL Li-Ion battery offers problem-free charge after long storage, permitting to use in a wide range of applications. These12v 20ah lithium battery, 12v 40ah lithium battery in their application.
2. GSL GROUP Limited has put more advanced features into 12v 50ah lithium battery to make it more attractive. GSL batteries are engineered with the highest quality components
3. In the aspect of design, the structure of lithium battery 12v 100ah is innovatively combined with the characteristics of lifepo4 battery charger. GSL 12V lithium-ion battery focuses on short-time and high-rate discharge scenarios
4. The built-in BMS protects the battery against short circuit, reverse polarity, over and under voltage, and over current. by expanding overseas market, GSL ENERGY has been playing a more important role in lithium battery 12v 200ah,lifepo4 lithium battery industry.
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS12200 | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 2560 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 525*270*220 |
| Battery pack Capacity (AH) | 150 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 28.0KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 30A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 150A | Transfer Certificates | UN38.3 , MSDS |

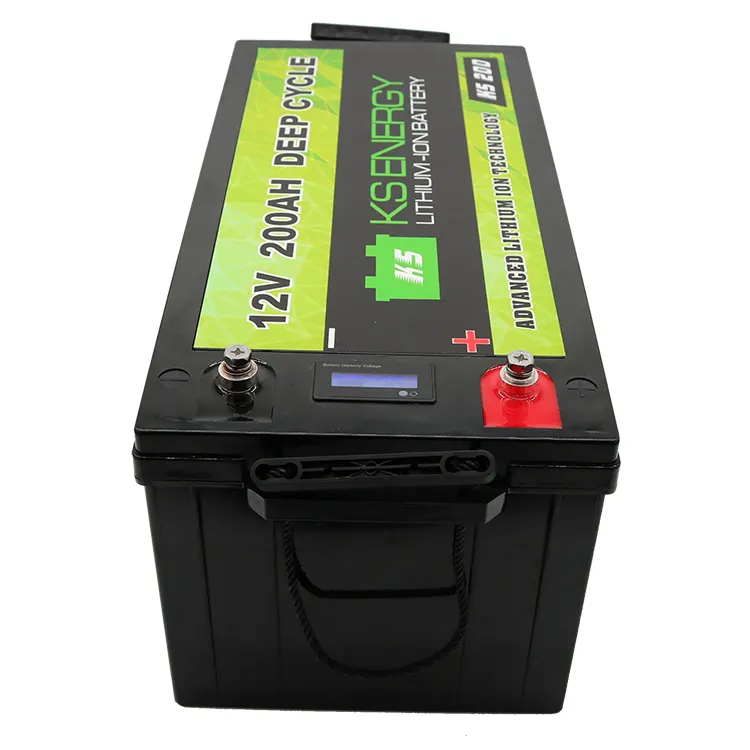

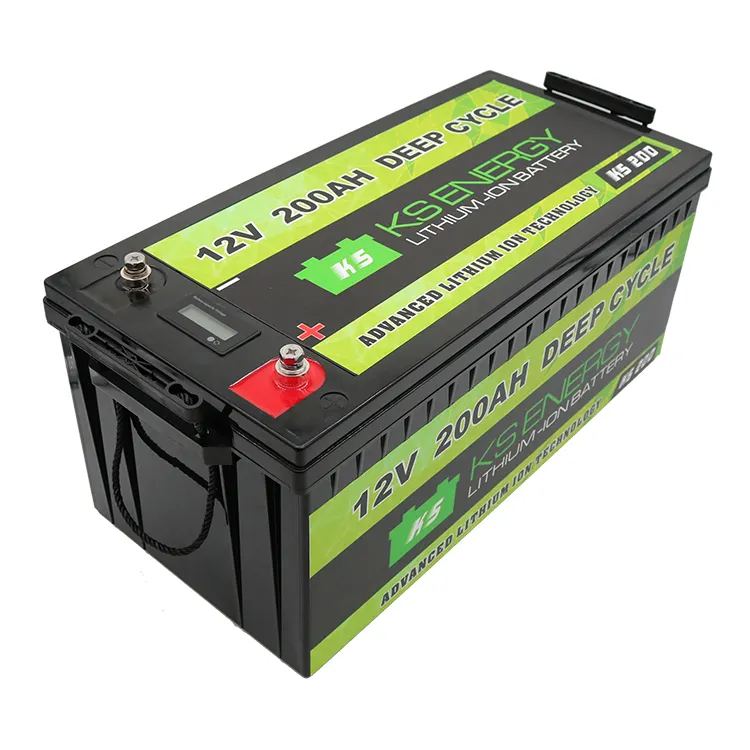

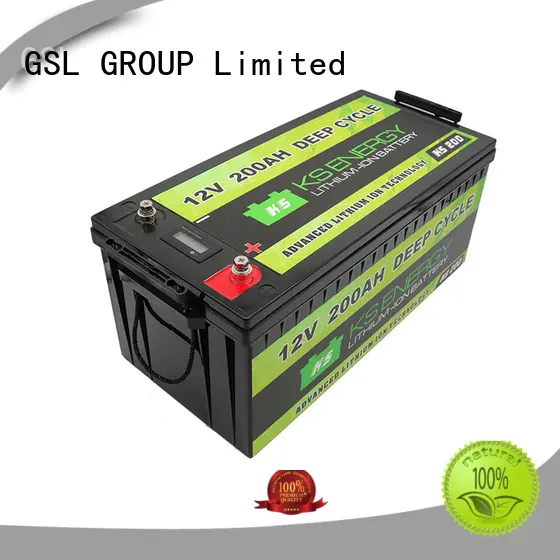

PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. GSL GROUP Limited is a 12v 50ah lithium battery manufacturer aimed at global market.
2. The professional excellent talents are the continuous developing power resource of GSL ENERGY.
3. 12v 20ah lithium battery, the New Service Idea of GSL GROUP Limited. Welcome to visit our factory!
