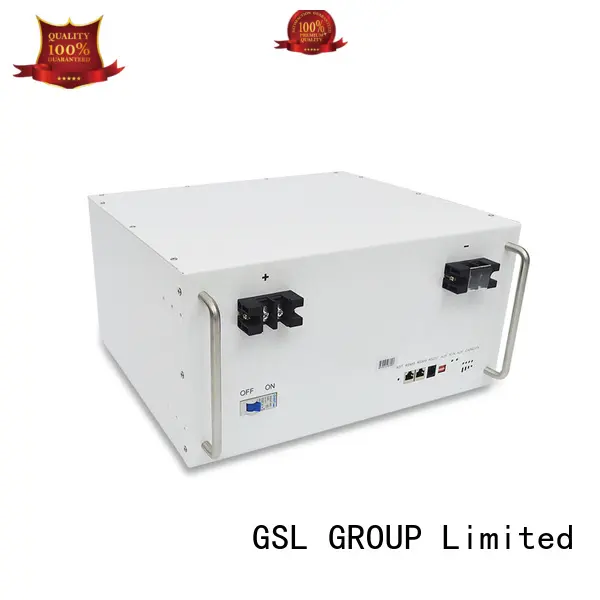

lifepo4 solar telecom battery tower GSL ENERGY Brand
-
v s
1. Our Li-Ion Battery achieves extreme use and longevity with GSL deep cycle technology. The shapes and colors of ess battery pack can be customized based on customer's requirements.
2. The built-in BMS protects the battery against short circuit, reverse polarity, over and under voltage, and over current. Seldom does our telecom battery,battery bank go malfunction.
3. Continuously improved management system can guarantee a smooth production process. GSL batteries have strong charging acceptance and quick-charging capability
4. GSL GROUP Limited has a higher product development capacity. GSL Li-Ion battery technology is designed to monitor the battery system internally for maintenance-free use
| Products type | MODEL : GSL48100-5U | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 5120 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 48 | Dimension (L*W*H, mm) | 440*410*89 |
| Battery pack Capacity (AH) | 100 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 16S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 58.4 | Weight | 65.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 46V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
