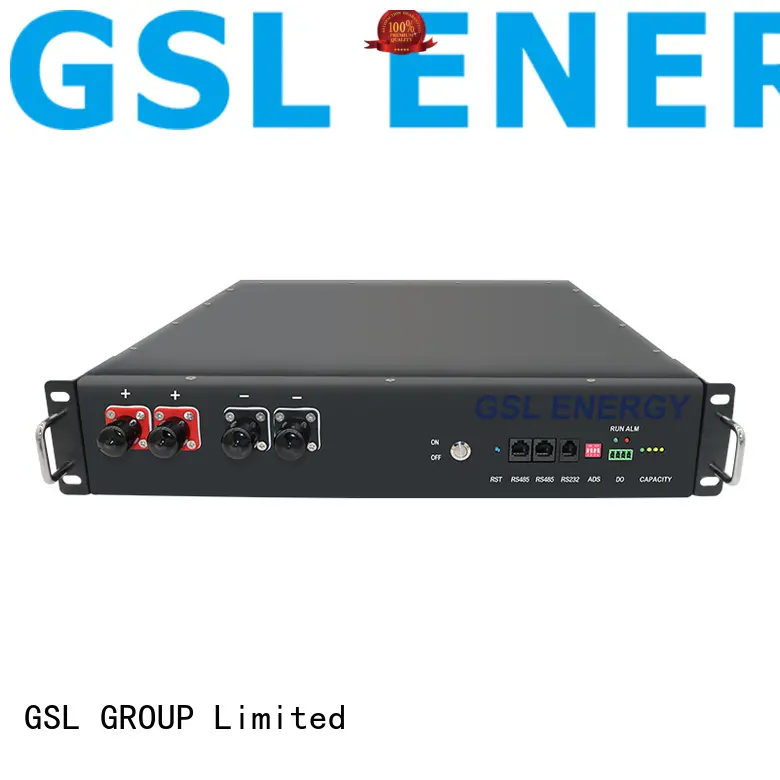

GSL ENERGY stable telecom battery deep cycle factory

Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL4850-2U
Rated voltage:
48
Capacity:
50Ah
Size ( mm) / Size ( inch) L*W*H:
442*480*88/ 17.40*18.90*3.46
Weight:
23kgs/10.43 lbs
Application:
Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package:
Carton Box
Payment terms:
T/T
Delivery time:
With 15 days after deposit
Inquiry
Company Advantages
1. telecom battery is novel in design and compact in structure. Moreover, it is easy to assemble and disassemble, and is well received by customers.
2. The product is superior in the field and has a large market share. GSL Li-Ion battery offers problem-free charge after long storage, permitting to use in a wide range of applications
3. This product has an anti-wrinkle and anti-fading effect. Its bright colors are specially made fadeless with washing. Compared to outdated AGM or lead-acid batteries, GSL lithium batteries are approximately 70% lighter
4. This product is somewhat fire retardant. The insulating materials used for this product meet higher demands in glow wire testing. Our Li-Ion Battery achieves extreme use and longevity with GSL deep cycle technology
PRODUCT PARAMETER

GSL ENERGY

product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img


BASICPARAMETERSGSL4850-2U
GSL48100-5UGSL48200-5U
Nominal Voltage(V)484848
Nominal Capacity(Wh)2400Depth of Discharge100%
Dimension (mm)442*480*88Dimension (L*W*H, mm)442*480*88
Weight (Kg)23CommunicationOption of CANBUS OR RS485, SMbus
Discharge Voltage (V)45~5445~5445~54
Charge Voltage (V)52.5~5452.5~5452.5~54
Max Discharge Current (A)50100125
Max Charge Current (A)50100125
CommunicationRS232,RS485,CANRS232,RS485,CANRS232,RS485,CAN
Charging Temperature0℃~50℃0℃~50℃0℃~50℃
Discharging Temperature-10℃~50℃-10℃~50℃-10℃~50℃
Shelf Temperature-20℃~60℃-20℃~60℃-20℃~60℃
CertificationIEC / CE / UN38.3IEC / CE / UN38.3IEC / CE / UN38.3
Design life10+Years(25℃/77℉)10+Years(25℃/77℉)10+Years(25℃/77℉)
Cycle Life>4500 ( 90% DoD)>4500 ( 90% DoD)>4500 ( 90% DoD)


PRODUCTS DISPLAY





product-GSL ENERGY-img






Product Performance

product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img  Vertical industry integration ensures more than 6000 cycles with 90% DoD.
product-GSL ENERGY-img  Compact and fashionable design fits in your sweet home environment.
product-GSL ENERGY-img  Deliver up to 5KW with single module (2.4KWh).
product-GSL ENERGY-img  Modular design gives the end customers the power of choice of capacity.
product-GSL ENERGY-img  Compatible with most of the available Hybrid inverters.
product-GSL ENERGY-img  Simple buckle fixing minimize the installation time and cost.
product-GSL ENERGY-img  Safety Cert.TüV CE UN38.3 IEC.



PRODUCT ADVANTAGE



product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img



product-GSL ENERGY-img



product-GSL ENERGY-img

You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION



product-GSL ENERGY-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-img


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.


product-GSL ENERGY-img-1



PACKING

product-GSL ENERGY-img-1

Good Quality Packs
VS
product-GSL ENERGY-img-1

Low Quality Packs

SUPER SAFETY TEST


product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img-1

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US


Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


product-GSL ENERGY-img-1




Company Features
1. The traditional technology and modern technology are combined for the production of telecom battery .
2. One of the main objectives for our company is to find a balance between economic growth and cleaner environments. We will make efforts to reduce carbon footprint and energy consumption, which may also help us save production costs.
