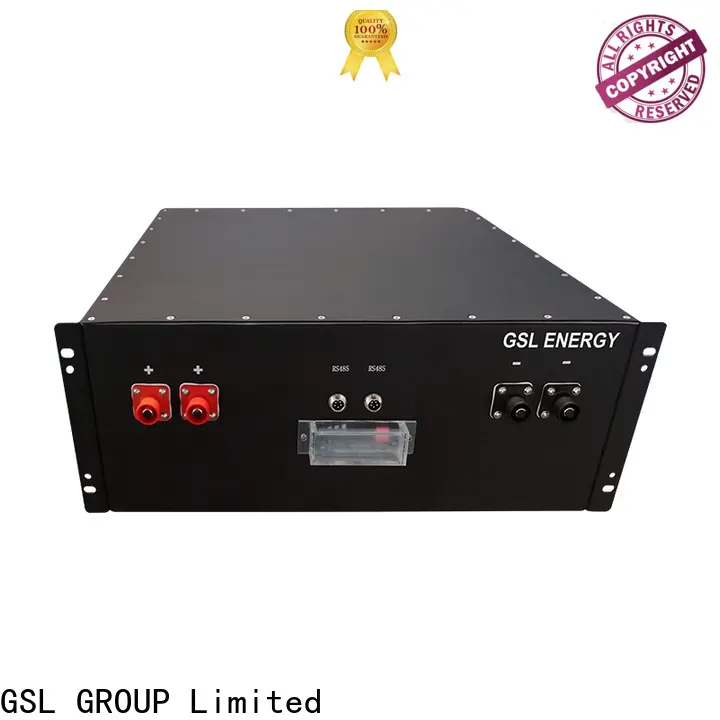

GSL ENERGY stable lifepo4 battery pack deep cycle distributor

Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL48200-5U
Rated voltage:
48
Capacity:
200Ah
Size ( mm) / Size ( inch) L*W*H:
442*650*220/17.40*25.59*8.66
Weight:
87kgs/ 191.80 lbs
Application:
Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package:
Carton Box
Payment terms:
T/T
Delivery time:
With 15 days after deposit
Inquiry
Company Advantages
1. GSL ENERGY lifepo4 battery pack boasts reasonable design compared to traditional type. Each GSL battery is designed with explosion proof stainless steel, flame retardant electrolyte and a thermal fuse.
2. GSL GROUP Limited maintains strategic alliance relationships with many companies. High-performance GSL Li-Ion battery is sealed and safe for indoor use
3. The product is of high quality and can withstand rigorous quality and performance testing. GSL batteries help maximize the performance of users' battery system
4. This product has stable performance and long service life. GSL Li-Ion battery has low internal resistance and high, flat voltage characteristics during strong current discharge
PRODUCT PARAMETER

GSL ENERGY

product-GSL ENERGY-img


BASICPARAMETERSGSL4850-2UGSL48100-5UGSL48200-5U
Nominal Voltage(V)484848
Nominal Capacity(Wh)240048009600
Dimension (mm)442*480*88442*480*220442*650*220
Weight (Kg)234887
Discharge Voltage (V)45~5445~5445~54
Charge Voltage (V)52.5~5452.5~5452.5~54
Max Discharge Current (A)50100125
Max Charge Current (A)50100125
CommunicationRS232,RS485,CANRS232,RS485,CANRS232,RS485,CAN
Charging Temperature0℃~50℃0℃~50℃0℃~50℃
Discharging Temperature-10℃~50℃-10℃~50℃-10℃~50℃
Shelf Temperature-20℃~60℃-20℃~60℃-20℃~60℃
Certification

IEC / CE / UN38.3

IEC / CE / UN38.3IEC / CE / UN38.3
Design life10+Years(25℃/77℉)10+Years(25℃/77℉)10+Years(25℃/77℉)
Cycle Life>4500 ( 90% DoD)>4500 ( 90% DoD)>4500 ( 90% DoD)


PRODUCTS DISPLAY





product-GSL ENERGY-img






Product Performance

Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Deliver up to 5KW with single module (2.4KWh).
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.



PRODUCT ADVANTAGE



product-GSL ENERGY-img



product-48200-GSL ENERGY-img



product-GSL ENERGY-img

You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION



product-GSL ENERGY-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-img


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.


product-GSL ENERGY-img-1



PACKING

product-GSL ENERGY-img-1

Good Quality Packs
VS
product-GSL ENERGY-img-1

Low Quality Packs

SUPER SAFETY TEST


product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img-1

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US


Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


product-GSL ENERGY-img-1




Company Features
1. GSL GROUP Limited has many years of comprehensive experience in the design and manufacture of battery bank in telecom tower . We have the best knowledge base and highly acclaimed customer service.
2. Our production capacity occupies steadily in the forefront of the lifepo4 battery pack industry.
3. In the enterprising spirit of 'Pursuit of Excellence', our company strives to develop in a rapid and steady way. By deepening communication, we will work hard to assist customers to design, develop, and manufacture the accurate products they need.
