Good Quality Packs
GSL ENERGY
Products type | MODEL : GS10000U | Battery pack Discharge Current (Max.) | 100A |
Cell Technology | Lifepo4 | Efficiency | 98% |
Battery Pack Capacity (Wh) | 9800-10240 | Depth of Discharge | 100% |
Battery pack Voltage (Vdc) | 48-51.2 | Dimension (L*W*H, mm) | 650*480*190 |
Battery pack Capacity (AH) | 200 | Communication | Option of CANBUS OR RS485, SMbus |
Battery pack Cell Quantity in Series (pcs) | 15S(OFF GRID)/16S(Hybrid) | Protection Class | IP54 |
Battery pack Charge Voltage (Vdc) | 54-58.4 | Weight | 98KG |
Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 6000 times |
Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
Battery pack Discharge lower-Voltage (Vdc) | 40-46V | Storage Temperature | minus 20 -- 60 ℃ |
Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
Battery pack Discharge Current (Normal) | 50A | Transfer Certificates | UN38.3,MSDS,IEC62133,IEC62219 |

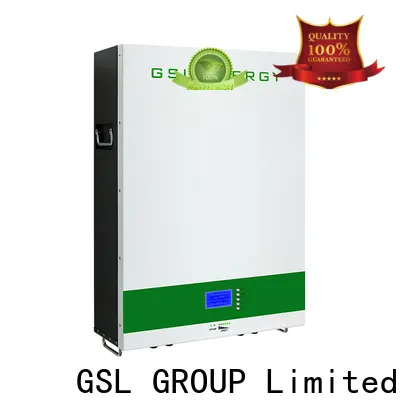

GSL's power storage wall ESS adopts the latest HESS battery system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.

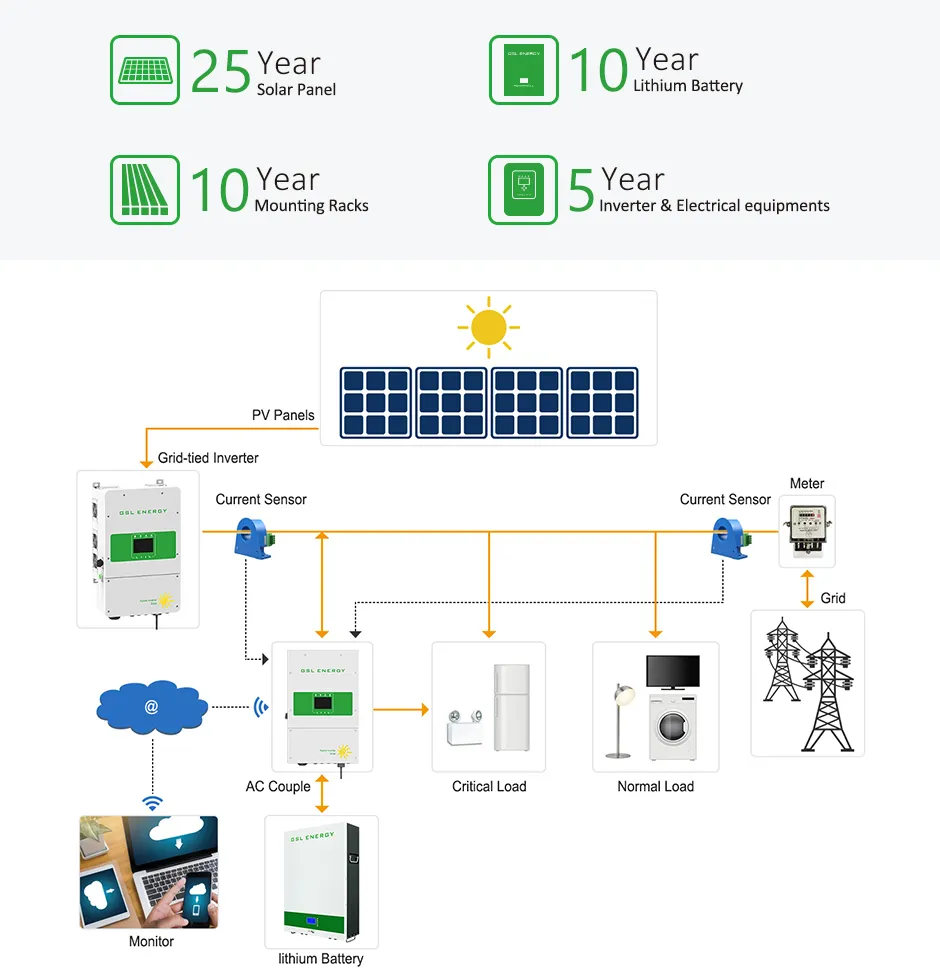

It is a kind of environmentally friendly backup power system. We use phosphates rather than cobalt to avoid environmental concerns, lower the possibilities of thermal runaway because of improper disposal, and save the production cost as well. Compared with other products in the market now, this kind of product experiences a lower rate of capacity loss. With state-of-the-art power conversion and energy storage technologies, our energy storage system (ESS) offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules 48V, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
PRODUCT ADVANTAGE
1.High integrated with less installation space.

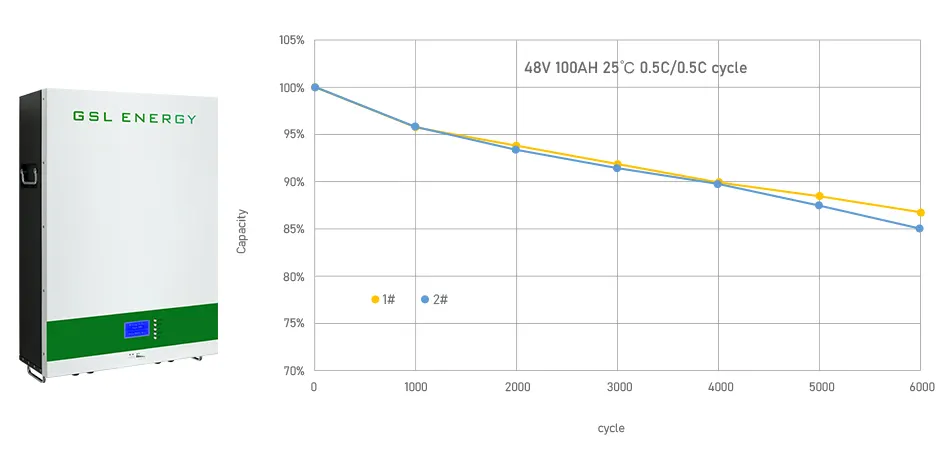

2.Long life cycle, >6000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
6.10 years warranty on full set battery,20 years warranty on life span under 80% DOD.
APPLICATION

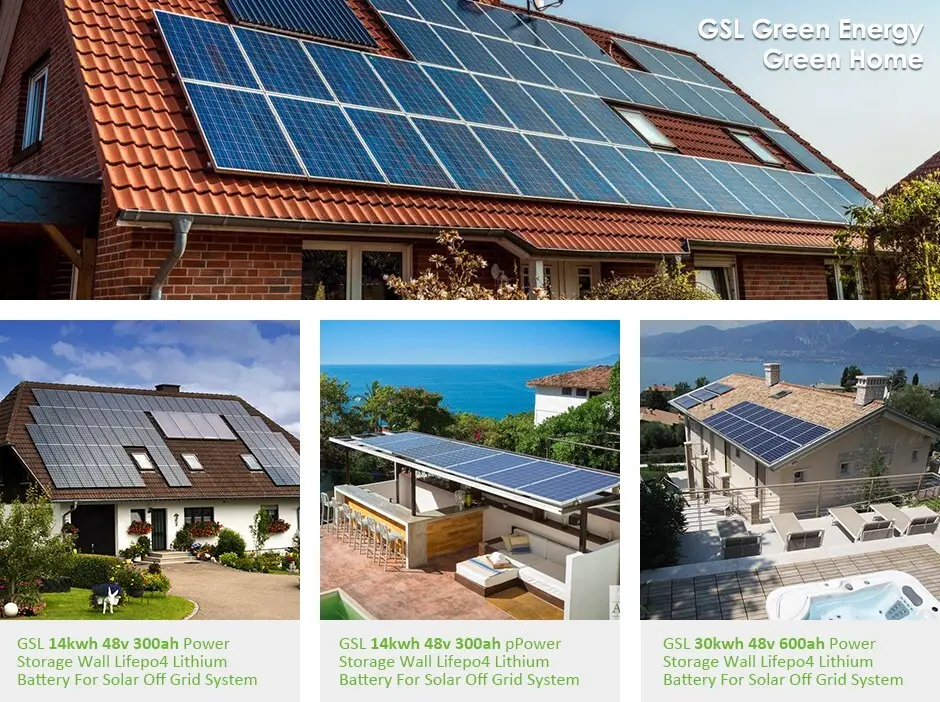

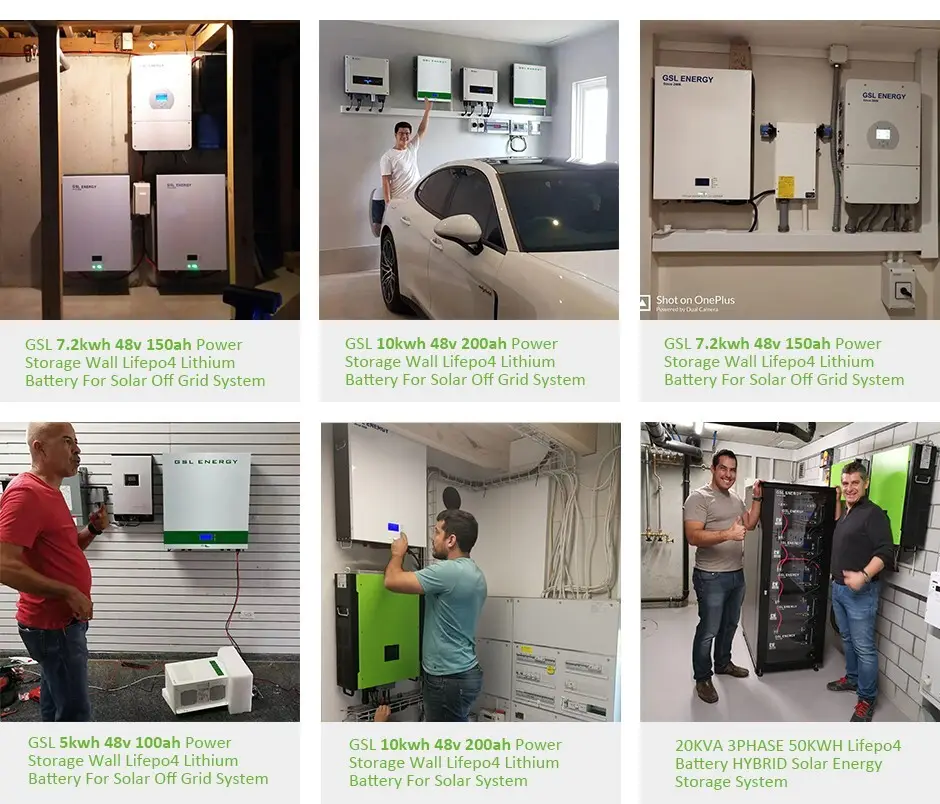

Since 2013, GSL's power storage wall ESS products have gained much more popularity among over 5000 families spreading all over the world and related solutions have been widely deployed in residential, commercial, and grid-tied storage systems, vehicle battery, and emergency power for iCloud.
PACKING
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
