GSL ENERGY solar energy system for home adjustable large capacity1
GSL ENERGY
| Technology parameter sheet | ||||
| Model | SHS-1200 | SHS-2400 | SHS-4800 | |
Battery rated voltage | 12.8VDC | 25.6VDC | 48VDC | |
| Battery Type | Lifepo4(10 years) | Lifepo4 | Lifepo4 Battery | |
| Battery Capacity | 100Ah | 100Ah | 100Ah | |
| Inverter | Rated power | 1000W | 1500W | 4000W |
| Input voltage range | 145-275VAC | 145-275VAC | 145-275VAC | |
| Input frequency | 45-65Hz | 45-65Hz | 45-65Hz | |
| Output voltage | 220VAC | 220VAC | 220VAC | |
| Output frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
Output wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | |
| Specification of built-in battery | 1*100AH/25.6V | 1*100AH/48V | ||
| Charge current | 10A | 10A | 30A | |
| MPPT Solar input | MPPT Voltage Range | 15V-150VDC | 30V-150VDC | 60V-150VDC |
| PV Power | 400W | 1200W | 2900W | |
| Rated charge current | 30A(Max) | 50A(Max) | 60A(Max) | |
| MPPT efficiency | ≥99% | ≥99% | ≥99% | |
| Floating charge voltage | 14.4VDC | 28.8VDC | 54VDC | |
| DC output | Low voltage recovery voltage | 13.4VDC | 26.8VDC | 50.2VDC |
| Low voltage protection voltage | 11.4VDC | 22.8VDC | 42.7VDC | |
| 5VDC USB output | 2units/MAX 2A | 2units/MAX 2A | 2units/MAX 2A | |
| 12VDC output ports | 2units/MAX 2A | 2units/MAX 2A | 2units/MAX 2A | |
| Heat dissipation/Cooling | Temperature control by intelligent exhaust fan | Temperature control by intelligent exhaust fan | Temperature control by intelligent exhaust fan | |
| Operating ambient temperature | -20 - +50℃ | -20 - +50℃ | -20 - +50℃ | |
| Storage ambient temperature | -25 - +55℃ | -25 - +55℃ | -25 - +55℃ | |
| Operating/Storage ambient | 0-90% No condensation | 0-90% No condensation | 0-90% No condensation | |
| External size:W*D*H(mm) | 412*274*507 | 575*326*600 | 510*356*659 | |
| Package size:W*D*H(mm) | 512*375*616 | 675*427*776 | 605*455*850 | |
| Weight (kg) | 31 | 54 | 83 | |
Product Performance

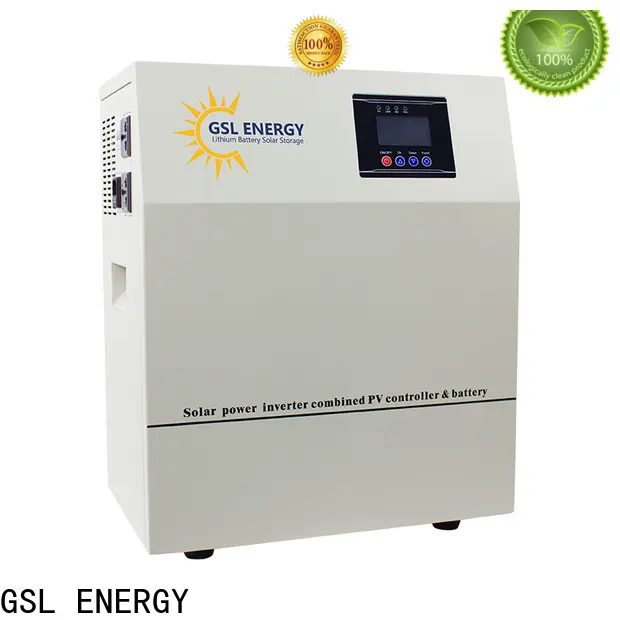

1. This is a multi-function inverter/charger/solar system.
2. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
3. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
4. Compatible to mains voltage or generator power, auto restart while AC is recovering.
5. Users can flexibly match battery capacity, standard battery packages or external batteries.
6. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
7. Integrated design, Easy transportion and installation.
8. Overload/Over temperature/short circuit protection.
9. Our product are CE ,ROHS, ISO, FC approved, meeting various certification requirements for different countries.
INTERIOR STRUCTURE
PRODUCT ADVANTAGE
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
FACTORY INTRODUCTION
GSL ENERGY is focused on manufacturing,R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE/ROSH/UL/VDE/MSDS/UN38.3,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
