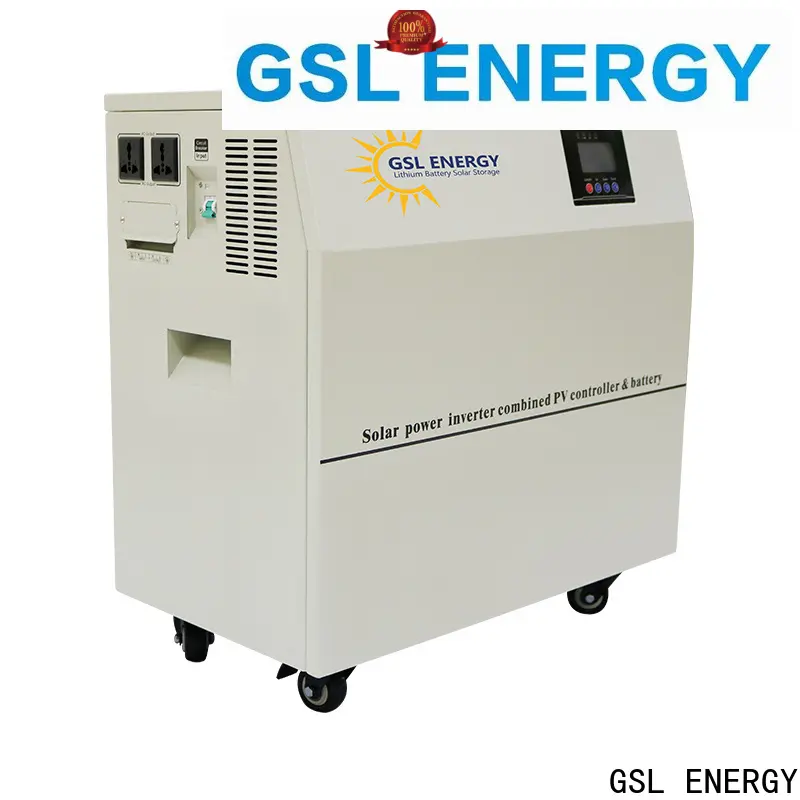

GSL ENERGY solar energy system for home adjustable fast delivery

Company Advantages
1. GSL ENERGY solar panel system for home is developed and produced complying with concepts such as comfort, breathability, wrinkle resistance, and hygroscopicity, to meet the highest textile standards. GSL Li-Ion battery features military-grade plates for an extra margin of performance and service life
2. With its heavy-duty construction, the product is capable of meeting the most demanding production needs for many factories and companies. Our Li-Ion Battery achieves extreme use and longevity with GSL deep cycle technology
3. The product has a low self-discharge rate. It can retain the stored energy best and can be kept in storage for several years. Each GSL battery has a built-in PCM protection board from over-discharge, over-charge, short circuit, etc
4. The product is robust. It is able to prevent possible leaks and lost energy capacity while enduring various harsh environments. GSL 12V lithium-ion battery is a new environmentally friendly backup power system
5. The product is less prone to memory. It can be briefly charged at any time regardless of their charging state. GSL Li-Ion battery has strong resistance to Shock, Vibration, Chemicals, Weather, and Heat

Technology parameter sheet
Model		SHS-1200	SHS-2400	SHS-4800
Battery rated voltage		12.8VDC	25.6VDC	48VDC
Battery Type		Lifepo4(10 years)	Lifepo4	Lifepo4 Battery
Battery Capacity		100Ah	100Ah	100Ah
Inverter	Rated power	1000W	1500W	4000W
	Input voltage range	145-275VAC	145-275VAC	145-275VAC
	Input frequency	45-65Hz	45-65Hz	45-65Hz
	Output voltage	220VAC	220VAC	220VAC
	Output frequency	50/60Hz	50/60Hz	50/60Hz
	Output wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
	Specification of built-in battery		1*100AH/25.6V	1*100AH/48V
	Charge current	10A	10A	30A
MPPT Solar input	MPPT Voltage Range	15V-150VDC	30V-150VDC	60V-150VDC
	PV Power	400W	1200W	2900W
	Rated charge current	30A(Max)	50A(Max)	60A(Max)
	MPPT efficiency	≥99%	≥99%	≥99%
	Floating charge voltage	14.4VDC	28.8VDC	54VDC
DC output	Low voltage recovery voltage	13.4VDC	26.8VDC	50.2VDC
	Low voltage protection voltage	11.4VDC	22.8VDC	42.7VDC
	5VDC USB output	2units/MAX 2A	2units/MAX 2A	2units/MAX 2A
	12VDC output ports	2units/MAX 2A	2units/MAX 2A	2units/MAX 2A
Heat dissipation/Cooling		Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan	Temperature control by intelligent exhaust fan
Operating ambient temperature		-20 - +50℃	-20 - +50℃	-20 - +50℃
Storage ambient temperature		-25 - +55℃	-25 - +55℃	-25 - +55℃
Operating/Storage ambient		0-90% No condensation	0-90% No condensation	0-90% No condensation
External size:W*D*H(mm)		412*274*507	575*326*600	510*356*659
Package size:W*D*H(mm)		512*375*616	675*427*776	605*455*850
Weight (kg)		31	54	83

Product Performance

1.  This is a multi-function inverter/charger/solar system.

2.  Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.

3.  LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.

4.  Compatible to mains voltage or generator power, auto restart while AC is recovering.

5.  Users can flexibly match battery capacity, standard battery packages or external batteries.

6.  It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.

7.  Integrated design, Easy transportion and installation.

8.  Overload/Over temperature/short circuit protection.

9.  Our product are CE ,ROHS, ISO, FC approved, meeting various certification requirements for different countries.

◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE/ROSH/UL/VDE/MSDS/UN38.3,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.

Company Features
1. By pursuing higher quality of solar energy system for home , our company has won many high recommendations.
2. GSL GROUP Limited has a well-trained management team and a strong team of skilled workers.
3. To constantly provide high-end product for customers is GSL ENERGY's principle. Check it!
