GSL ENERGY manufacturing solar energy system intelligent control large capacity
GSL ENERGY

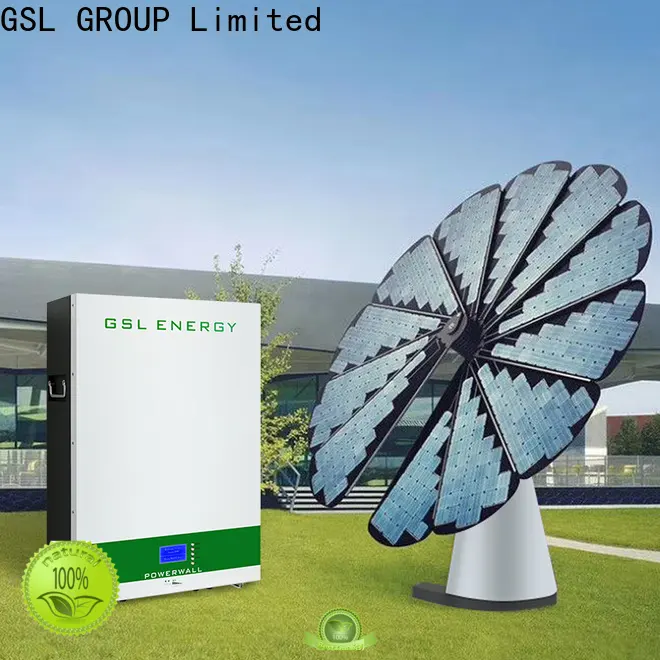

GSL smart sunflower is a movable, adjustable photovoltaic energy system.
1. track the path of the sun and maintain the best angle of power generating in real time. When the system is enabled, the solar
module will automatically expand and start generating electricity.
2. the leaves will fold into the sleep state at night automatically.
3. 40% efficiency more than conventional solar energy system.
4. work stable when wind speed is less than 34m/s.
Auto-Tracking
Fixed Type
PRODUCT ADVANTAGE
Power generation efficiency
With the unique sunlight tracking function,keeps the static alignment with the sun,compared to rooftop systems,sunflower provides maximum power generation efficiency in the daytime.
Structure
| PV Output | 2.1~2.5KWp | Reverse trace | Valid |
| Dual axis tracking power | 3.4~6.2KWh/a | Power off data protection | Valid |
| Battery capacity | 100~200Ah | Intelligent location identification | Valid |
| Voltage | 24/110/220/380V | Wind Resistance | Valid |
| Module material | glass/back plate | Wind Resistance | 17m/s |
| Cell | Monocrystalline | RPM | 0.028rpm |
| Output | ＞80% in 20 years | Torque | 1.5KN·m |
| Working temp | -20℃~60℃ | Max torque | 3KN·m |
| Control | Astronomical tracing algorithm | Over turningmoment（Max.） | 13.5KN·m |
| Horizontal tracking range | -120°~120° | Static torque | 10KN·m |
| Elevation tracking range | 0°~60° | The axial loa（Max.） | 32KN |
| Tracking accuracy | ≤1° | The radial load（Max.） | 28KN |
| Cell phone APP | real-time data | Waterproof | IP65 |
Power storage-Inverter AIO
Power storage-5Kw 7Kw 10Kw POWERWALL
| LiFePO4 Lithium Battery Pack Spec | ||||||||
| Energy | Battery | Charging Voltage | Standard Charge Current | Max charge | Standard Discharge Current | Maximum Continuous Discharge Current | Dimension (L×W×H) | Weight |
| 5 KWH | 48V / 51.2V 100Ah | 54V / 58V | 20V/50A | 120A | 50A | 300A(1S) | 650*480*190mm | 53 / 58.5Kg |
| 7 KWH | 48V / 51.2V 150Ah | 65 / 73.3Kg | ||||||
| 10 KWH | 48V / 51.2V 200Ah | 85 / 96Kg | ||||||
APPLICATION
GSL Energy
The simplest path to solar power.
Smartflower simplifies the solar experience.In just hours,your Smartflower can be delivered,installed,and connected to your home,providing clean energy from one simple,stand-alone device.
Resorts, hotels, and restaurants can power their operations, even in remote areas, while demonstrating their environmental commitment to their guests.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
