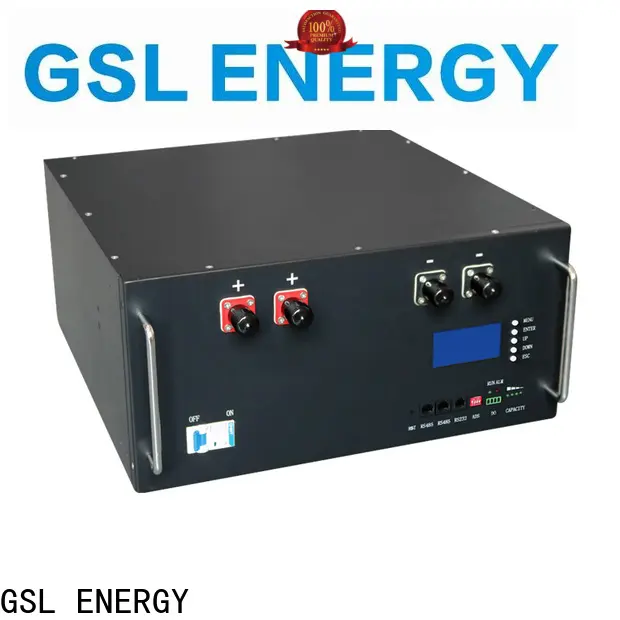

GSL ENERGY lifepo4 battery pack deep cycle factory

Battery Type:
LithiumionphosphateBattery
Brand:
GSLENERGY
Model No:
GSL-48100-5U
Rated voltage:
48
Capacity:
100Ah
Size ( mm) / Size ( inch) L*W*H:
442*480*220/17.40*18.90*8.66
Weight:
48kgs/105.82 lbs
Application:
Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package:
Carton Box
Payment terms:
T/T
Delivery time:
With 15 days after deposit
Inquiry
Company Advantages
1. GSL ENERGY lithium ion battery for telecom application is carefully checked in the overall application system, making sure it can meet all requirements of the storage battery industry. GSL batteries have strong charging acceptance and quick-charging capability
2. The company has an independent product development center and production base, for various lifepo4 battery pack products development. GSL Li-Ion battery has strong resistance to Shock, Vibration, Chemicals, Weather, and Heat
3. The superior performance of the product is crowd-pleasing in the market. GSL Li-Ion battery is very easy to install and requires no maintenance
4. The product is in high demand in the international market due to its high quality and good usability. High-performance GSL Li-Ion battery is sealed and safe for indoor use
PRODUCT PARAMETER

GSL ENERGY

product-GSL ENERGY-img


BASICPARAMETERSGSL4850-2UGSL48100-5UGSL48200-5U
Nominal Voltage(V)484848
Nominal Capacity(Wh)240048009600
Dimension (mm)442*480*88442*480*220442*650*220
Weight (Kg)234887
Discharge Voltage (V)45~5445~5445~54
Charge Voltage (V)52.5~5452.5~5452.5~54
Max Discharge Current (A)50100125
Max Charge Current (A)50100125
CommunicationRS232,RS485,CANRS232,RS485,CANRS232,RS485,CAN
Charging Temperature0℃~50℃0℃~50℃0℃~50℃
Discharging Temperature-10℃~50℃-10℃~50℃-10℃~50℃
Shelf Temperature-20℃~60℃-20℃~60℃-20℃~60℃
CertificationIEC / CE / UN38.3IEC / CE / UN38.3IEC / CE / UN38.3
Design life10+Years(25℃/77℉)10+Years(25℃/77℉)10+Years(25℃/77℉)
Cycle Life>4500 ( 90% DoD)>4500 ( 90% DoD)>4500 ( 90% DoD)


PRODUCTS DISPLAY





product-48100-GSL ENERGY-img






Product Performance

Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Deliver up to 5KW with single module (2.4KWh).
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.



PRODUCT ADVANTAGE



product-GSL ENERGY-img



product-GSL ENERGY-img



product-GSL ENERGY-img

You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.



APPLICATION



product-GSL ENERGY-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-img


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.


product-GSL ENERGY-img-1



PACKING

product-GSL ENERGY-img-1

Good Quality Packs
VS
product-GSL ENERGY-img-1

Low Quality Packs

SUPER SAFETY TEST


product-EIA 2U Lifepo4 battery pack 48V 50Ah for home energy storage 24kwh-GSL ENERGY-img-1

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US


Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


product-GSL ENERGY-img-1




Company Features
1. With a solid grasp of innovative technologies, GSL ENERGY can provide high quality lifepo4 battery pack at competitive rates.
2. Good corporate culture is an important guarantee for the development of GSL ENERGY. Get price!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
