20kWh/30kWh/40kWh/50kWh/60kWh 204V/307V/409V/512V/614V Battery Energy Storage System

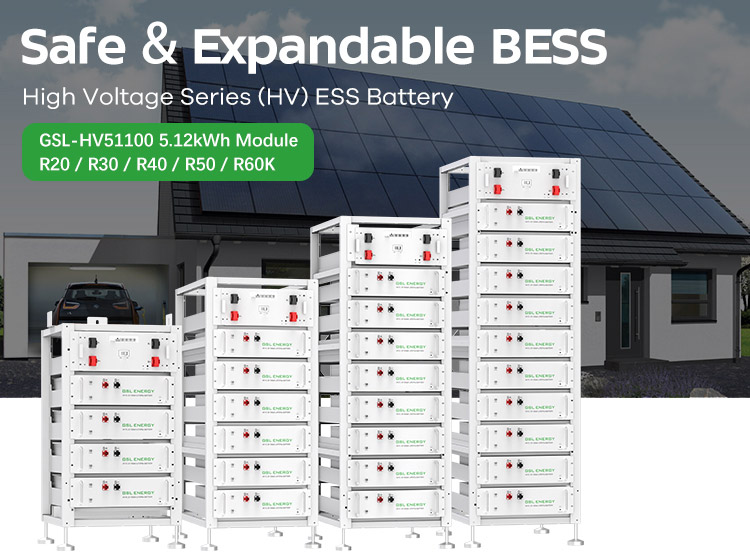

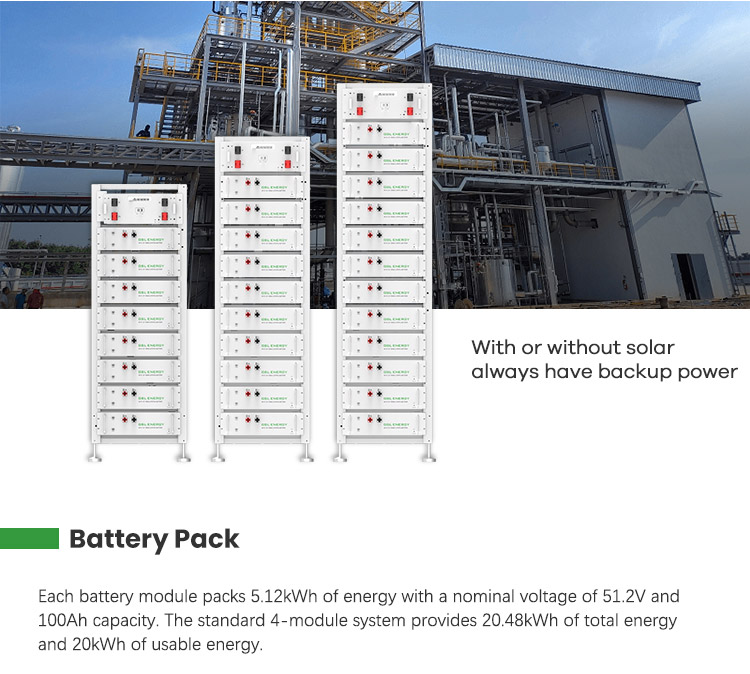

GSL-HV51100 5.12kWh Module
GSL's power storage wall ESS adopts the latest HESS battery system. With rich experience and advanced techniques, this kind of home battery provides house battery backup for emergency use, it has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

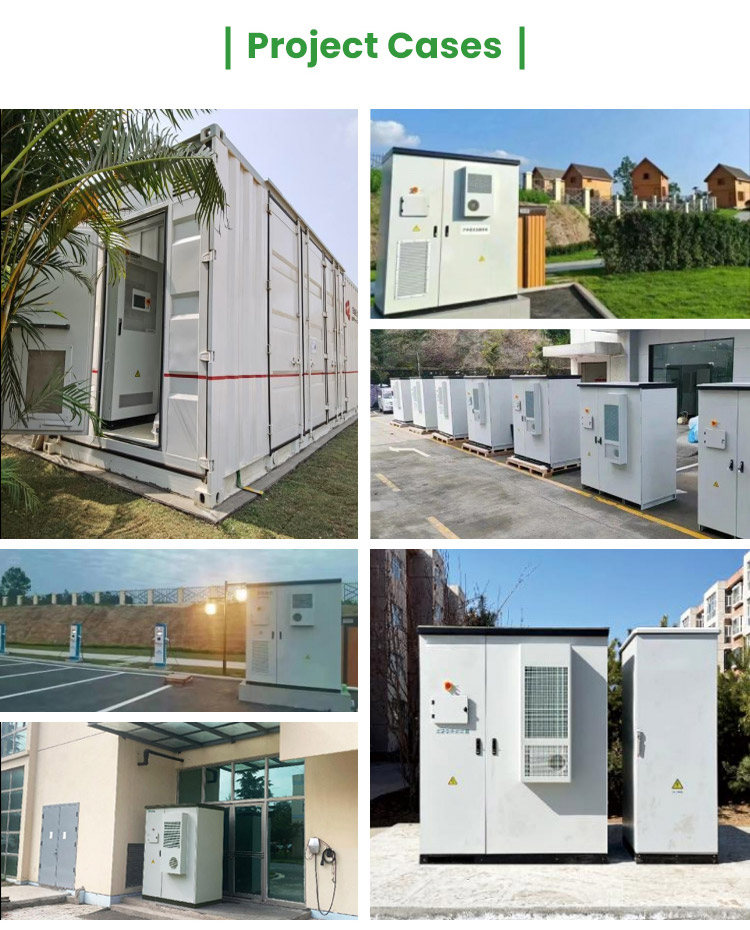

Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model No | GSL-R20K | GSL-R30K | GSL-R40K | GSL-R50K | GSL-R60K |
Nominal Capacity | 20.48kWh | 30.72kWh | 40.96kWh | 51.20kWh | 61.44kWh |
Cell Matching | 64S1P | 96S1P | 128S1P | 160S1P | 192S1P |
Working Voltage Range | 176-230.4V | 268.8-345.6V | 358.4-460.8V | 448-576V | 537.6-691.2V |
Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
Weight | 396.4 kg | 479.6 kg | 562.8kg | 646kg | 729.2kg |
Dimension (WxDxH) | 553*503*1011mm | 553*503*1620mm | 553*503*1620mm | 553*503*2230mm | 553*503*2230mm |
Battery Type | LFP(LiFePO4) | ||||
Nominal Working Current | 100A | ||||
Communication Port | CAN/RS485 | ||||
Working Temperature Rang | Charge:0-55°C/Discharge:-20-55°C | ||||
Waterproof | IP20 | ||||
Installation Method | Floor-standing | ||||
Cycle Life | 10 years | ||||
Peak Charge/Discharge Current (@25°C,5S) | 150A | ||||
Discharge Rate of Module | ≤3.5%/month/@25°C | ||||
Please Contact Us！
We will serve you the best products with the favorite prices
| Model No | GSL-R20K | GSL-R30K | GSL-R40K | GSL-R50K | GSL-R60K |
Nominal Capacity | 20.48kWh | 30.72kWh | 40.96kWh | 51.20kWh | 61.44kWh |
Cell Matching | 64S1P | 96S1P | 128S1P | 160S1P | 192S1P |
Working Voltage Range | 176-230.4V | 268.8-345.6V | 358.4-460.8V | 448-576V | 537.6-691.2V |
Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
Weight | 396.4 kg | 479.6 kg | 562.8kg | 646kg | 729.2kg |
Dimension (WxDxH) | 553*503*1011mm | 553*503*1620mm | 553*503*1620mm | 553*503*2230mm | 553*503*2230mm |
Battery Type | LFP(LiFePO4) | ||||
Nominal Working Current | 100A | ||||
Communication Port | CAN/RS485 | ||||
Working Temperature Rang | Charge:0-55°C/Discharge:-20-55°C | ||||
Waterproof | IP20 | ||||
Installation Method | Floor-standing | ||||
Cycle Life | 10 years | ||||
Peak Charge/Discharge Current (@25°C,5S) | 150A | ||||
Discharge Rate of Module | ≤3.5%/month/@25°C | ||||
Please Contact Us！
We will serve you the best products with the favorite prices
