GSL ENERGY 100ah solar battery short time high performance

Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS1240
Battery combination:
4S 13P 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
40Ah
Size ( mm) / Size ( inch) L*W*H:
197*165*169/ 7.8*6.5*6.7
Weight:
4.5 kgs/ 9.92 lbs
Application:
AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 10 days after deposit
Inquiry
Company Advantages
1. GSL ENERGY 100ah solar battery has passed the test for flammability. The testing principle is straightforward. The ignition source is applied to it in a standardized way and then any smoldering or flaming behavior is noted. GSL Li-Ion battery technology is designed to monitor the battery system internally for maintenance-free use
2. The product has high customer satisfaction and shows a wider market potential. High-performance GSL Li-Ion battery is sealed and safe for indoor use
3. The product features high energy density when compared to other batteries. It has a high power capacity without being too bulky. GSL lithium-ion battery is configured with high-performance BMS
4. The product is characterized by low heat generation. During its operation, exothermic reactions between the chemicals used and Joule heating will not increase its temperature. The raw material meets related certificates needs like CE, UL, PSE, CB, ROSH, MSDS, etc
PRODUCT PARAMETER
GSL ENERGY


Products typeMODEL : KS1240Battery pack Discharge Current (Max.)80A
Cell TechnologyLifepo4Efficiency98%
Battery Pack Capacity (Wh)512Depth of Discharge100%
Battery pack Voltage (Vdc)12.8Dimension (L*W*H, mm)197*165*169
Battery pack Capacity (AH)40CommunicationOption of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs)4SProtection ClassIP54
Battery pack Charge Voltage (Vdc)14.6Weight4.5KG
Battery System Charge Current (Standard)10AOperation Life10+ years
Battery pack Charge Current (Normal)20AOperation Cycle LifeOver 4000 times
Battery pack Charge Current (Max.)40AOperation Temperature0-50℃
Battery pack Discharge lower-Voltage (Vdc)10VStorage Temperatureminus 20 -- 60 ℃
Battery System Discharge Current (Standard)20AProducts certificatesTÜV (IEC62619), CE
Battery pack Discharge Current (Normal)40ATransfer CertificatesUN38.3 , MSDS


PRODUCTS DISPLAY

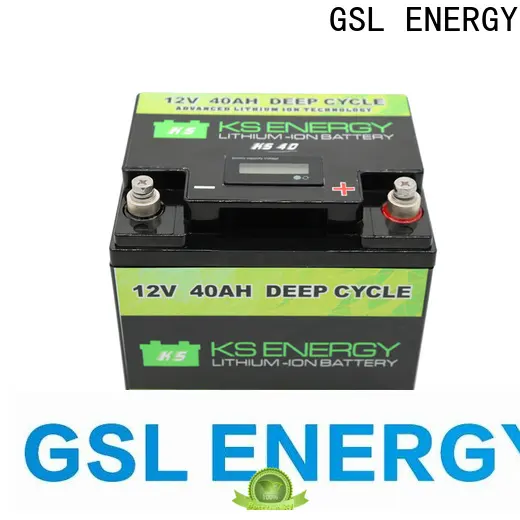

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-1


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-2
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-3

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-4

12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.


PRODUCT ADVANTAGE



GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-4

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-5


1.High integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.

3.Without heavy metals and environment friendly.

4.Maintenance free, no memory effect.

5.Internal BMS with full protection, high voltage protection with higher reliability.



APPLICATION


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-6


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.



PACKING

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-7

Good Quality Packs
VS
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-8

Low Quality Packs

SUPER SAFETY TEST



GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-9
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-10
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-11

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US



Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-12




Company Features
1. GSL GROUP Limited has become a professional manufacturer of high-performance 100ah solar battery recent years. We have professional and well-trained customer service teams. Besides providing quality service on the products, they can also help clients make the proposal and workable solutions.
2. We have been licensed with an export right. This right allows us to conduct business in foreign markets, including R&D, production, and marketing, and we are qualified and authorized to participate in international exhibitions.
3. Our company has a flexible and diverse workforce with multi-skilled staff. Most of these employees can fill the positions of absent employees and work in any area that requires increased manpower. This allows us to maintain production efficiency under all circumstances. Making the company that a world lifepo4 solar battery supplier is the lifelong pursuit of each GSL ENERGY Individual. Contact!
