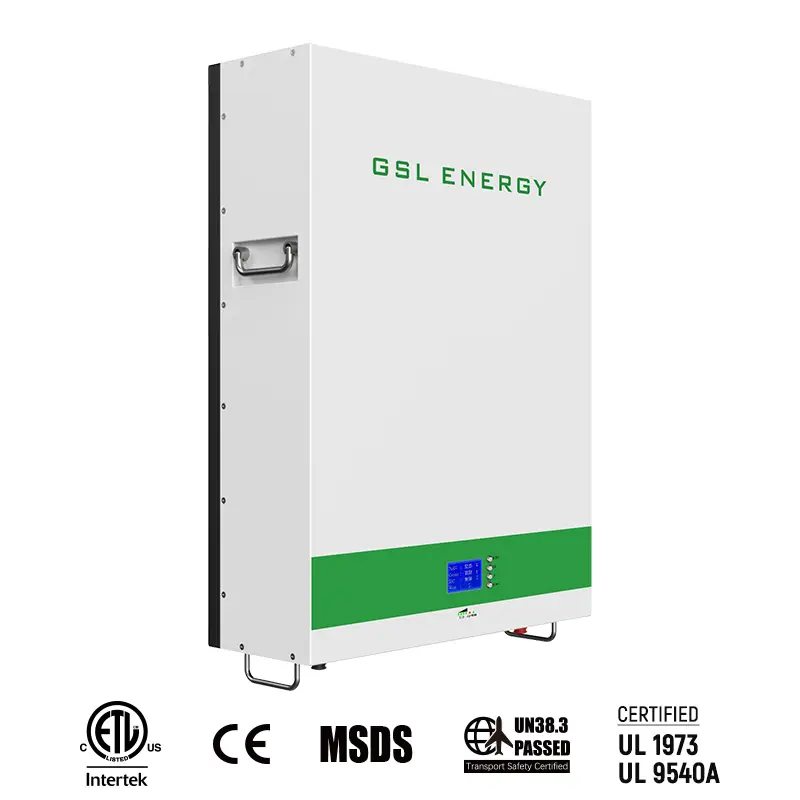

GSL ENERGY 51.2V CATL Lifepo4 Battery 200Ah Solar Power Wall Lithium Battery Pack 10Kwh For Home System
PRODUCT ADVANTAGE
⭐ Grade a cells with over 6500 times cycle life and offer 20 years extended warranty available to increase ROI
⭐ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
⭐ Support max 16pcs parallel/stack power
⭐ Max charge and discharge 150A= 7680Wh to AC loading
⭐ Perfectly match over 16 brands hybrid inverters in the world
⭐ CTP tech to save battery size and reduce weight
⭐ Built in 200A double industrial heavy-duty power switch to warranty battery safety
| MODEL NO | GSL051200A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | |
Capacity (Ah) | 200 | |
| Scalability | Max.16pcs in parallel (162kWh) | |
Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 46-56 | |
Energy (kWh) | 10.24 | |
Usable Energy (kWh) | 9.22 | |
Charge/Discharge Current (A) | Recommend | 100 |
Max. | 150 | |
Peak(2mins,25℃) | 200 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D,mm) | 735*525*190 | |
Weight Approximate (kg) | 102.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
2 LED (working, alarming, protecting) | ||
IP Rating of Enclosur | IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | |
| Installation | Wallmounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 20 years | |
| Life Cycle Power During Warranty Period | 44.84MWh@80% EOL | |
| Certification | UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3 | |
PROJECT CASES
We Have Furnished Many Clients With Solar System And Service Over 138+ Countries Since 2006
WHY CHOOSE US
⭐ Experience-- More than 16 years specialized in lithium battery, leaders of lithium lifepo4 battery.
⭐ Certification-- UL 9540, UL 1973, CE, MSDS, UN38.3, ISO and IEC from national center for quality supervision and Inspection of battery products approved.
⭐ Quality Assuranc-- A product life with a 10-15 year warranty.
⭐ Raw Material & Process-- All products are made with Grade A LiFePO4 cells from Top Five brands, and meet UL standards.
⭐ Response Speed-- Solution within 24H hours, delivery within 15 days for regular products, support customization.
⭐ Customer Service-- Sales team of professional engineers, 24H hours online service, solve customer problems.
