GSL ENERGY light weight lifepo4 battery pack bulk production for car
-
v s
1. The mechanical parts of GSL ENERGY lifepo4 battery pack , mainly electrode current collector foils, tabs to take off the current, external terminals, the case, and seals, are specially designed to meet safety targets.
2. lifepo4 battery pack is manufactured based on unique formula and superior materials. It has good corrosion resistance and low self-discharge rate. Moreover, it is a green and high-quality product that does not contain harmful substances.
3. Professional sales and after-sales teams are available in GSL ENERGY.
4. GSL GROUP Limited takes the lead in grasping the development trend of lifepo4 battery pack industry.
| Products type | MODEL : KS50 | Battery pack Discharge Current (Max.) | 100A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 640 | Depth of Discharge | 100% |

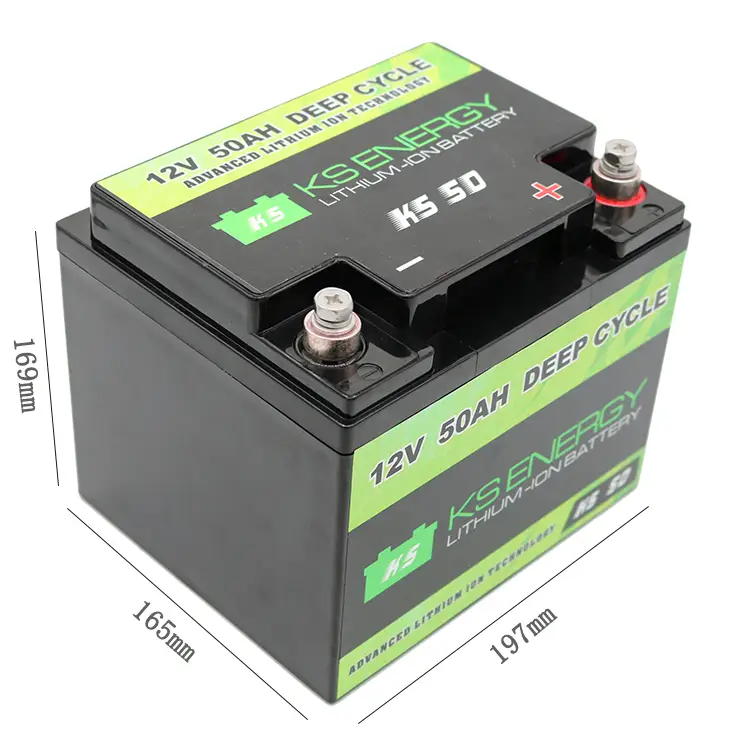

| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 197*165*169 |
| Battery pack Capacity (AH) | 50 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 5.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 50A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. GSL GROUP Limited is a professional supplier in lifepo4 battery pack market.
2. All testing reports are available for our lifepo4 battery 12v 100ah .
3. In consonance with the view of the customers has always been the development source of GSL ENERGY. Inquire now! Cooperating with customers to promote lifepo4 battery 100ah manufacturing industry better is our wish. Inquire now!
