Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-KS1240
Battery combination:
4S 13P 26650 3.2V 3200mAh
Rated voltage:
12.8
Capacity:
40Ah
Size ( mm) / Size ( inch) L*W*H:
197*165*169/ 7.8*6.5*6.7
Weight:
4.5 kgs/ 9.92 lbs
Application:
AGV, Robots, Solar UPS, Solar street led lights, golf carts, Marine UPS.
Package:
UNCarton
Payment terms:
T/T
Delivery time:
With 20 days after deposit
Inquiry
Application Scope
Lithium Ion Battery is widely used in automobiles, motorcycles, tractors, diesel engines and other products.GSL ENERGY always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
  • GSL ENERGY lifepo4 battery pack inquire now led display2 11
Product Details
With a focus on quality, GSL ENERGY pays great attention to the details of Lithium Battery .Lithium Battery is equipped with high-quality batteries. It has the advantages of large capacity, high power, small self-discharge, and good temperature resistance. Reasonable in structure, it is easy to assemble and disassemble.
  • GSL ENERGY lifepo4 battery pack inquire now led display2 12
Company Advantages
1. Being distinctly superior in lithium ion battery 12v 100ah , our products gain more and more popularity.
2. The product is remarkable in sealing. The principal axis rotates continuously and tightens up the spring rolls, allowing no medium to get through.
3. GSL GROUP Limited provides fully dedicated service teams to satisfy customers' need.
4. GSL GROUP Limited has carried out industrialization for its patent and technology.
PRODUCT PARAMETER
GSL ENERGY


Products typeMODEL : KS1240Battery pack Discharge Current (Max.)80A
Cell TechnologyLifepo4Efficiency98%
Battery Pack Capacity (Wh)512Depth of Discharge100%
Battery pack Voltage (Vdc)12.8Dimension (L*W*H, mm)197*165*169
Battery pack Capacity (AH)40CommunicationOption of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs)4SProtection ClassIP54
Battery pack Charge Voltage (Vdc)14.6Weight4.5KG
Battery System Charge Current (Standard)10AOperation Life10+ years
Battery pack Charge Current (Normal)20AOperation Cycle LifeOver 4000 times
Battery pack Charge Current (Max.)40AOperation Temperature0-50℃
Battery pack Discharge lower-Voltage (Vdc)10VStorage Temperatureminus 20 -- 60 ℃
Battery System Discharge Current (Standard)20AProducts certificatesTÜV (IEC62619), CE
Battery pack Discharge Current (Normal)40ATransfer CertificatesUN38.3 , MSDS


PRODUCTS DISPLAY

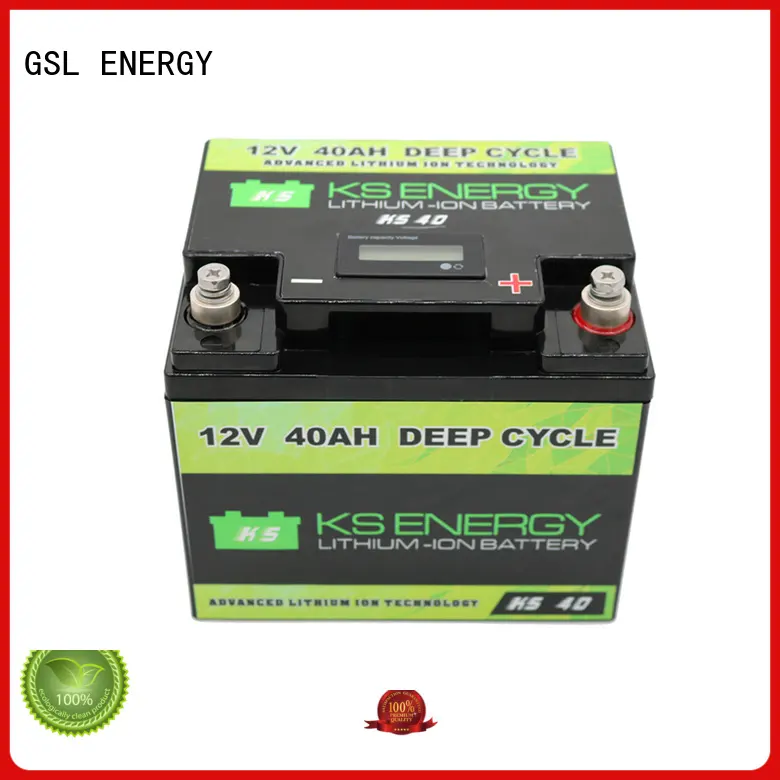

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-1


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-2
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-3

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-4

12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.


PRODUCT ADVANTAGE



GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-4

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-5


1.High integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.

3.Without heavy metals and environment friendly.

4.Maintenance free, no memory effect.

5.Internal BMS with full protection, high voltage protection with higher reliability.



APPLICATION


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-6


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.



PACKING

GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-7

Good Quality Packs
VS
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-8

Low Quality Packs

SUPER SAFETY TEST



GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-9
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-10
GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-11

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US



Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


GSL ENERGY-LED Capacity Display Lifepo4 12V 40AH Lithium Ion Battery-12




Company Features
1. GSL GROUP Limited excels in designing, manufacturing, and marketing high-quality products. We are a qualified manufacturer and supplier of lithium ion battery 12v 100ah .
2. The 12v lithium ion battery deep cycle technology in GSL GROUP Limited achieves high quality for lifepo4 battery pack .
3. We embrace sustainability all the time. We invest in automation technologies and continuously work to reduce our carbon footprint across the value chain. Our firm bears societal responsibilities. We operate according to this publicly accessible environmental policy because the institution, which communicates a preventative approach to sustainable growth. We attach importance to environmental protection. We will try hard to cut carbon footprint during production and reasonably handle and control production wastes. We strive to hold up the highest ethical and professional standards in our organization and we are highly accountable to our customers.
