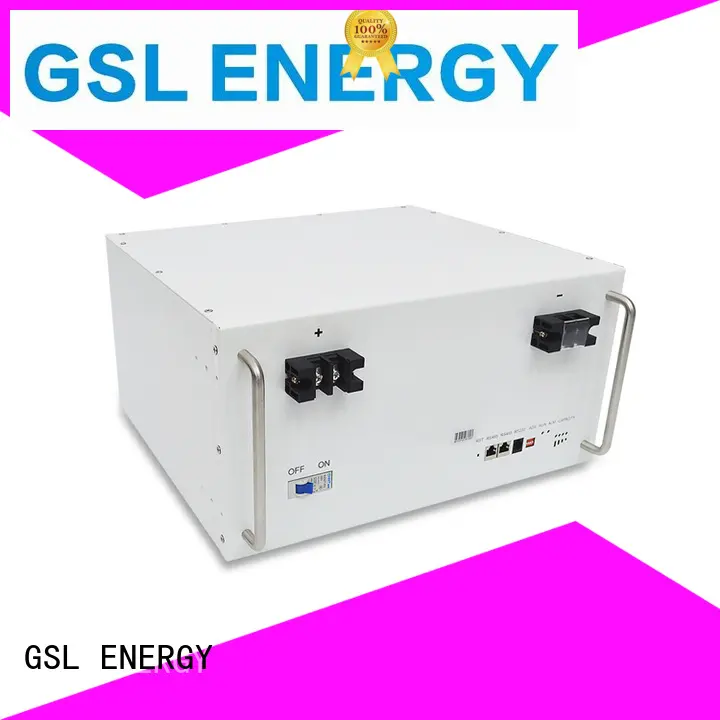

48V 100AH Lifepo4 Battery For Solar And Telecom UPS3
1. GSL GROUP Limited uses the most advanced technique in China, in order to produce the most high quality lifepo4 battery pack.
2. The product can bear the most demanding industrial conditions. It is made of heavy-duty materials such as steel alloys and is not prone to rust and corrosion.
3. The product helps cut labor costs. Its high efficiency and multi-functions enable manufacturers to hire fewer workers.
4. The product is lightweight and compact, which allows people to easily take it around everywhere by packing it into backpacks.
| Products type | MODEL : GSL48100-5U | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 5120 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 48 | Dimension (L*W*H, mm) | 440*410*89 |
| Battery pack Capacity (AH) | 100 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 16S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 58.4 | Weight | 65.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 46V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
GSL's energy storage system ESS adopts the latest HESS battery system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.
It is a kind of environmentally friendly backup power system. We use phosphates rather than cobalt to avoid environmental concerns, lower the possibilities of thermal runaway because of improper disposal, and save the production cost as well. Compared with other products in the market now, this kind of product experiences a lower rate of capacity loss. With state-of-the-art power conversion and energy storage technologies, our energy storage system (ESS) offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules 48V, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
Since 2013, GSL's powerwall ESS products have gained much more popularity among over 5000 families spreading all over the world and related solutions have been widely deployed in residential, commercial, and grid-tied storage systems, vehicle battery, and emergency power for iCloud.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
Company Features
1. With professional R&D team and skilled workers, GSL GROUP Limited has a promising future.
2. lifepo4 battery pack is manufactured with the technology of lithium ion battery for telecom application to ensure quality.
3. GSL ENERGY will always bring customers with reliable products. Inquire now! GSL ENERGY is a global famous brand for exporting ess battery . Inquire now! GSL GROUP Limited will become a highly competitive enterprise in battery bank in telecom tower market. Inquire now! GSL GROUP Limited knows better about your production needs. Inquire now!
