Good Quality Packs
large capacity ess battery bulk supply best manufacturer
Battery Type:
Lithium ion phosphate Battery
Brand:
GSL ENERGY
Model No:
GSL-48100-5U
Rated voltage:
48
Capacity:
100Ah
Size ( mm) / Size ( inch) L*W*H:
442*480*220/ 17.40*18.90*8.66
Weight:
48kgs/ 105.82 lbs
Application:
Solar off grid backup system, Solar Hybrid inverter UPS, Telecom UPS
Package:
Carton Box
Payment terms:
T/T
Delivery time:
With 15 days after deposit
PRODUCT PARAMETER
GSL ENERGY
| BASICPARAMETERS | GSL4850-2U | GSL48100-5U | GSL48200-5U |
| Nominal Voltage(V) | 48 | 48 | 48 |
| Nominal Capacity(Wh) | 2400 | 4800 | 9600 |
| Dimension (mm) | 442*480*88 | 442*480*220 | 442*650*220 |
| Weight (Kg) | 23 | 48 | 87 |
| Discharge Voltage (V) | 45~54 | 45~54 | 45~54 |
| Charge Voltage (V) | 52.5~54 | 52.5~54 | 52.5~54 |
| Max Discharge Current (A) | 50 | 100 | 125 |
| Max Charge Current (A) | 50 | 100 | 125 |
| Communication | RS232,RS485,CAN | RS232,RS485,CAN | RS232,RS485,CAN |
| Charging Temperature | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ |
| Discharging Temperature | -10℃~50℃ | -10℃~50℃ | -10℃~50℃ |
| Shelf Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Certification | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 |
| Design life | 10+Years（25℃/77℉） | 10+Years（25℃/77℉） | 10+Years（25℃/77℉） |
| Cycle Life | >4500 ( 90% DoD) | >4500 ( 90% DoD) | >4500 ( 90% DoD) |

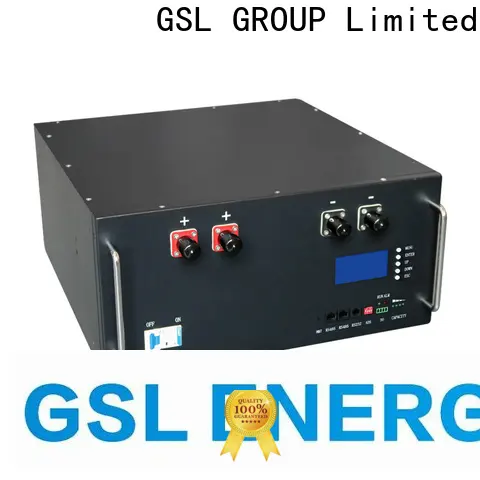

PRODUCTS DISPLAY
Product Performance
Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Deliver up to 5KW with single module (2.4KWh).
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.
PRODUCT ADVANTAGE
You can optionally add mounting brackets GSL4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
