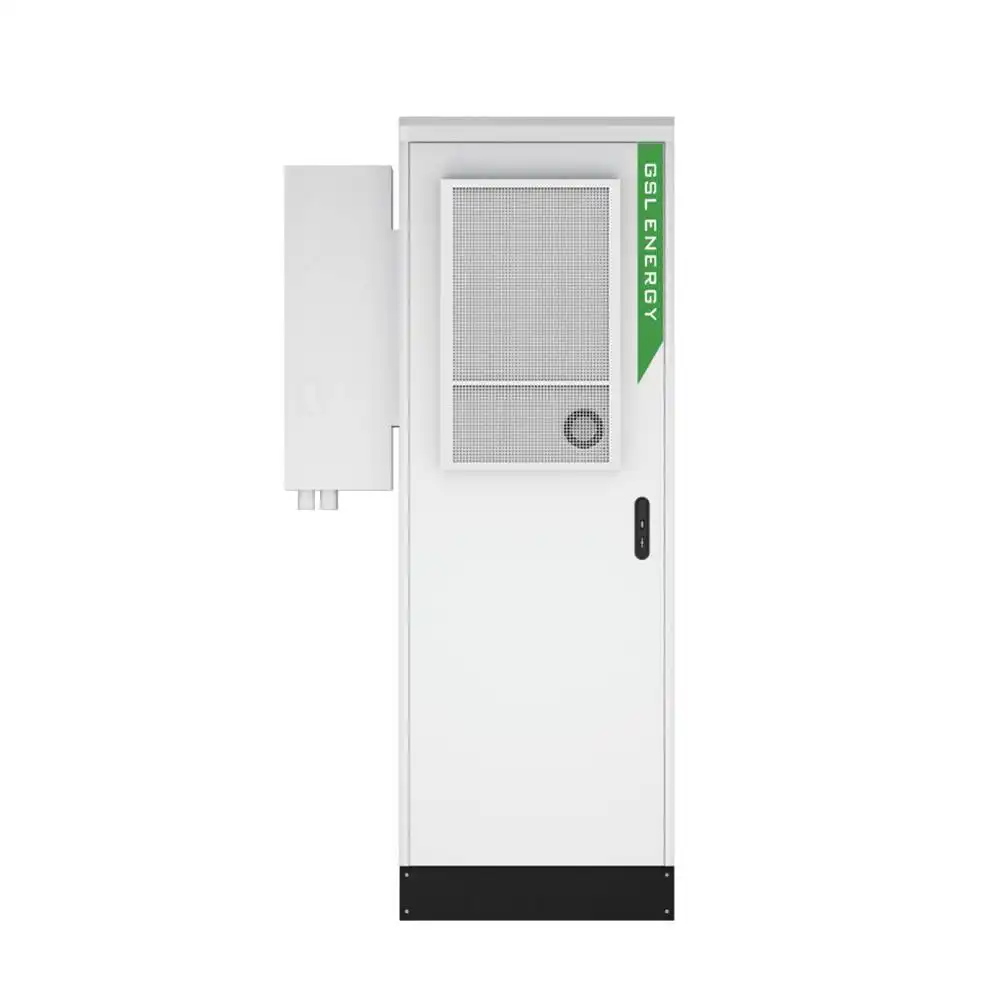

40kWh/45kWh/50kWh/55kWh/60kWh 30kVA All In One Mini C&I BESS

The Mini C&I Energy Storage System is a fully integrated, pre-configured solution for LargeResidential and Light Commercial Projects (3Ph 220/380, 230/400Vac @60Hz). The Mini C&I ESShas numerous applications such as Microgrid, backup, off-grid peak shaving, time of use, selfsupply, demand response and Virtual Power Plant (VPP). With AC and DC Coupling options,indoor and outdoor installation and Scalable capacity from 80-130kWh per unit, the Mini C&IESS is perfect for your project

    oops...!

    no product data.

    Go to homepage
    GSL AIO BESS MOBILE solar home system GSL-BESS-30K40,45,50,55,60_datasheet.pdf
    GSL AIO BESS MOBILE solar home system GSL-BESS-30K40,45,50,55,60_datasheet.pdf
    Model NoGSL-BESS-30K40GSL-BESS-30K45
    GSL-BESS-30K50GSL-BESS-30K55GSL-BESS-30K60
    Battery Specification
    Nominal Output Power/UPS Power (W)30000
    AC Output Frequency and Voltage
    50/60Hz; 3L/N/PE 220/380, 230/400Vac
    Grid TypeThree phase

    Energy Configuration (kWh)
    40.9646.08
    51.20
    56.32
    61.44
    Dimension (W x D x H,mm)
    1100x750x2200 (no contain inverter)
    Weight Appr. (kg) (no contain inverter)612.8654.4
    696.0
    737.6779.2
    AC Output Rated Current (A)100
    Battery Operating Voltage (V)100~500
    Battery ChemistryLiFePO4
    IP Rating of EnclosureIP55
    System CertificationUN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109
    Installation StyleFloor-Mounted
    Warranty10 years
    Inverter Technical Specification
    Max. PV Input Power (W)
    39000
    Max. PV Input Current (A)36+36+36+36
    Rated PV Input Voltage (Vdc)600
    Start Up DC Voltage (Vdc) 180

    MPPT Voltage Range (Vdc)

    150~850
    Max. PV Short-circuit Current (A)55+55+55+55
    Number of MPPT3
    Peak Power (off grid)1.5 time of rated power, 10s
    Power Factor0.8 leading to 0.8 lagging
    THD<3%
    DC injection current (mA) <0.5ln
    DisplayLCD
    Operating Temperature Range (℃)-40~60( >45℃ derating)
    Relative Humidity15% ~ 85% (No Condensing)
    Dimension (W x D x H, mm)420x233x670

    Inverter Communication

    CAN, RS485, WIFI, ETH
    Safety EMC / StandardIEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
    Grid RegulationVDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
    Max. Efficiency97.60%

    Max. Charging/Discharging

    Efficiency

    91.00%
    Battery Technical Specification
    Battery Module Nominal Voltage (V)409.6460.8
    512.0
    563.2
    641.4
    Battery Capacity (Ah)100
    Battery Energy (kWh)40.9646.0851.2056.3261.44
    BMS CommunicationCAN
    BMS parallel support connection 3sets(Standard), 32 sets ( Extra BAU module)
    Max Charge & Discharge Current (A)100
    Operating Temperature RangeCharge: 0~55℃ / Discharge: -20℃~55℃
    Cycle Life≥6500(@25℃±2℃,0.5C/0.5C,70%EOL)
    Short Circuit ProtectionYES
    Over Current ProtectionYES
    Over Charge ProtectionYES
    Over Temperature ProtectionYES
    Cell Over Voltage ProtectionYES
    Cell Over Under ProtectionYES
    Cell Discharge ProtectionYES


    40kWh/45kWh/50kWh/55kWh/60kWh 30kVA All In One Mini C&I BESS 4
