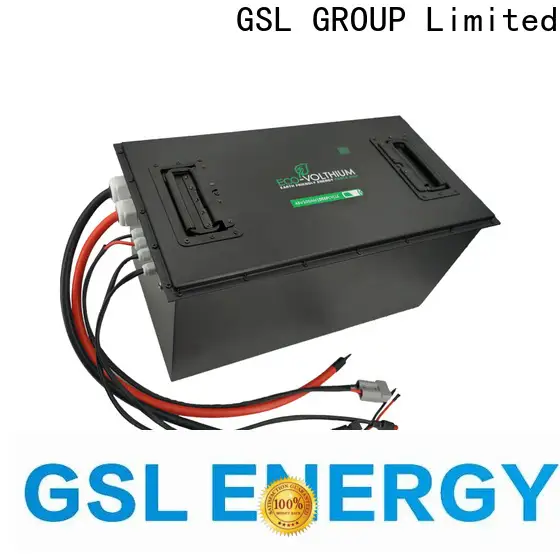

GSL ENERGY golf cart battery charger long service factory

Battery Type:
NCM Lithium Battery
Brand:
GSL ENERGY
Model No:
GSL48100
Rated voltage:
51.2
Capacity:
100Ah
Size ( mm) / Size ( inch) L*W*H:
508*280*230 / 20*11.02*9.06
Weight:
48.5kgs/ 106.95 lbs
Application:
Electric Golf cart
Package:
Wooden Box
Payment terms:
T/T
Delivery time:
With 15 days after deposit
Inquiry
Company Advantages
1. The specifications of golf cart battery charger can be customized according to customer needs. GSL 12V lithium-ion battery is a new environmentally friendly backup power system
2. With large factory and well-trained staff, GSL GROUP Limited can guarantee short lead time. GSL lithium-ion battery is configured with high-performance BMS
3. The product is examined under the supervision of our skilled quality experts against various parameters. GSL Li-Ion battery offers high performance and deep cycle energy storage
4. The product strictly upholds the high quality standards. The raw material meets related certificates needs like CE, UL, PSE, CB, ROSH, MSDS, etc
5. Being tested by the advanced testing equipment, the product quality is assured. GSL Li-Ion batteries use the same size and shape as outdated lead acid or AGM batteries for easy replacement
PRODUCT PARAMETER
GSL ENERGY


Products typeMODEL : GSL48100Battery pack Discharge Current (Max.)250A
Cell TechnologyNCM LithiumEfficiency98%
Battery Pack Capacity (Wh)5120Depth of Discharge100%
Battery pack Voltage (Vdc)51.2Dimension (L*W*H, mm)508*280*230
Battery pack Capacity (AH)100CommunicationOption of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs)14SProtection ClassIP54
Battery pack Charge Voltage (Vdc)58.4Weight48.5KG
Battery System Charge Current (Standard)10AOperation Life10+ years
Battery pack Charge Current (Normal)20AOperation Cycle LifeOver 4000 times
Battery pack Charge Current (Max.)50AOperation Temperature0-50℃
Battery pack Discharge lower-Voltage (Vdc)46VStorage Temperatureminus 20 -- 60 ℃
Battery System Discharge Current (Standard)20AProducts certificatesTÜV (IEC62619), CE
Battery pack Discharge Current (Normal)100ATransfer CertificatesUN38.3 , MSDS


PRODUCTS DISPLAY



GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery
GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-1
GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-2


GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-3

48V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.


PRODUCT ADVANTAGE



GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-3

GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-4


1.High integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.

3.Without heavy metals and environment friendly.

4.Maintenance free, no memory effect.

5.Internal BMS with full protection, high voltage protection with higher reliability.



APPLICATION


GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-5


Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.



PACKING

GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-6

Good Quality Packs
VS
GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-7

Low Quality Packs

SUPER SAFETY TEST



GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-8
GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-9
GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-10

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.


WHY CHOOSE US



Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery
Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
Fresh battery-- All battery is fresh Production.


GSL ENERGY-Electric Rickshaw Battery, 48v 100ah Lifepo4 Lithium Battery-11




Company Features
1. GSL GROUP Limited is well-known for its high technology.
2. Highly competent teams are the backbone of our company. Their high-performance work results in the superior performance of the company, which translates into a significant competitive advantage.
