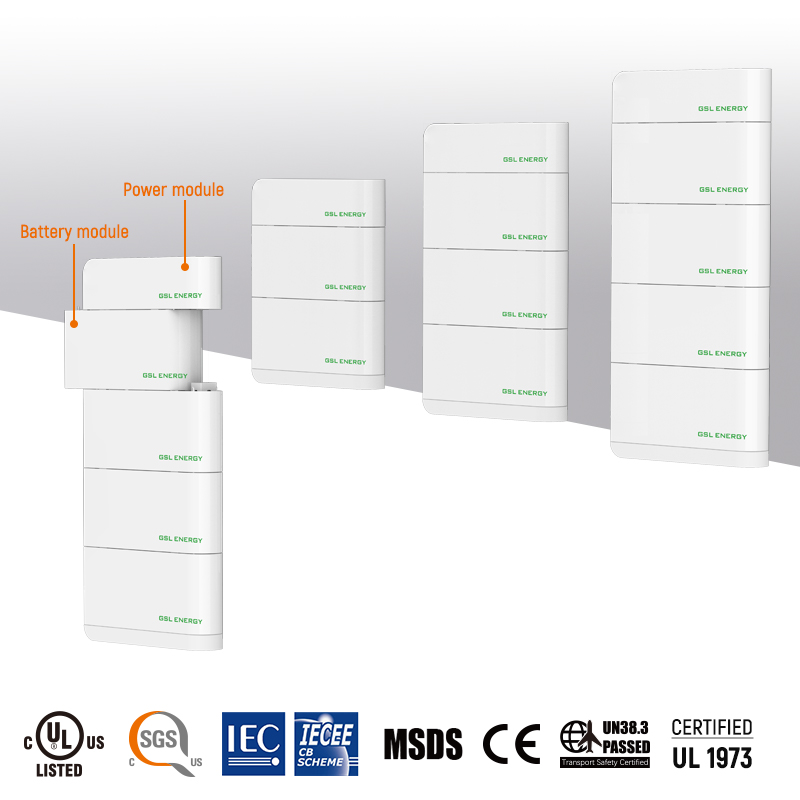

GSL ENERGY 15KWH UL1973 307.2V Residential ESS Lithium Battery Storage System Home
PRODUCT ADVANTAGE
⭐ Support a variety of communications, can communicate with a variety of inverters
⭐ Products cover 10-25KWH capacity segment
⭐ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
⭐ The product supports parallel connection and expansion
⭐ Simple appearance design, easy installation
| MODEL NO | GSL30750 |
| Battery Chemistry | LiFePO4 |
Capacity (Ah) | 50 |
Nominal Voltage (V) | 307.2V (96series) |
Energy (kWh) | 15 |
Internal Resistance | ≤100mΩ |
| Cycle Life | ≥5000 cycles @80% DOD, 25℃, 0.5C ≥4000 cycles @80% DOD, 40℃, 0.5C |
| Design Life | ≥10 years |
| Charge Cut-off Voltage | 340V±2V |
| Max.Continuous Work Current | 100A |
| Discharge Cut-off Voltage | 270V±2V |
| Charge Temperature | 0℃~60℃ |
| Discharge Temperature | -20℃~60℃ |
| Storage Temperature | -40℃~55℃ @ 60%±25% relative humidity |
| Dimension (W/H/D,mm) | 630*185*1265 |
Weight Approximate (kg) | Approx:180kg |
| Life Cycle Power During Warranty Period | RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter |
| Certification | UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) |
