Good Quality Packs

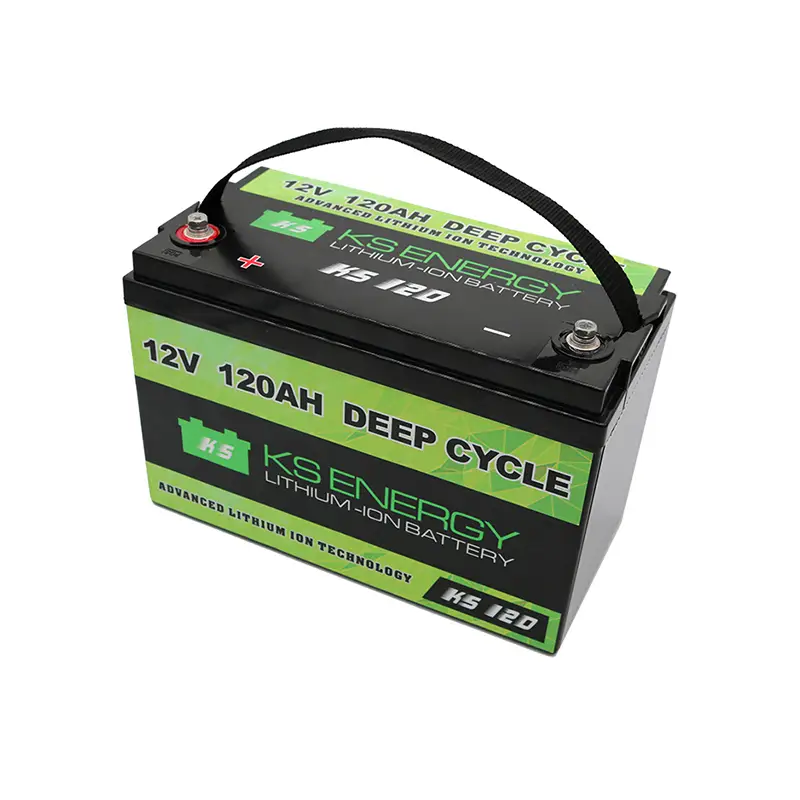

12V 120AH Deep Cycle Lifepo4 Lithium Battery Suppliers
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT PARAMETER
GSL ENERGY
| Products type | MODEL : KS120 | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | Lifepo4 | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 1536 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 323*171*215 |
| Battery pack Capacity (AH) | 120 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 4S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 14.6 | Weight | 14.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
Good Quality Packs
VS
Low Quality Packs
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
